Запчасти Case IH MAXXUM 115 (1.21.0[03]) - TRANSMISSION 16X16 OR 17X16 - REAR AXLE HOUSING, COVER AND RELATED PARTS (03) - TRANSMISSION

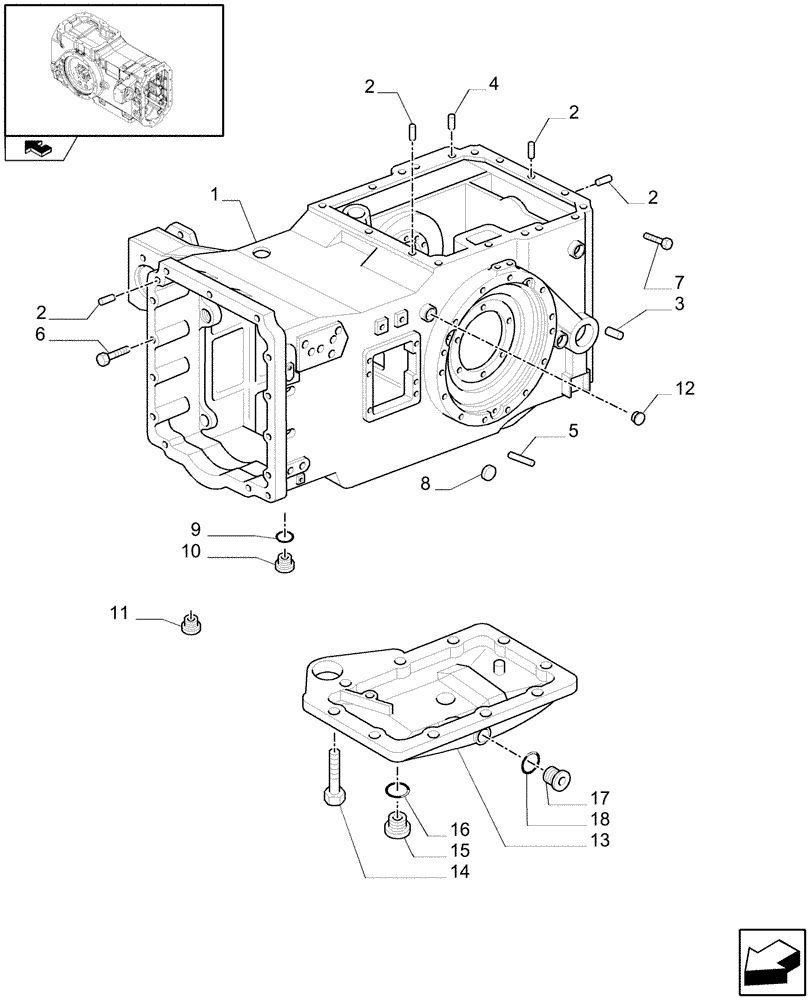

Схема запчастей Case IH MAXXUM 115 - (1.21.0[03]) - TRANSMISSION 16X16 OR 17X16 - REAR AXLE HOUSING, COVER AND RELATED PARTS (03) - TRANSMISSION
2
16
2
9
11
15
14
10
12
3
home
17
8
6
1
2
4
13
18
5
2
7

Артикул

Название

Примечание

Количество

1

87574045

TRANSMISSION HOUSING

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

M15 x 25

6шт.

3

5110200

DOWEL,12mm OD x 25mm L

M12 x 25

10шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

5

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

6

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

8шт.

7

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

5шт.

8

14328201

PLUG,M10, Tapered

1шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

10

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

11

10269801

PLUG,Cyl, M22 x 1.5mm

1шт.

12

14328701

PLUG,M20, Tapered

1шт.

12

504344694

PLUG,M25, Tapered

VAR.330908, 331908, 330909, 331909

1шт.

13

47129404

COVER

1шт.

14

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

14

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

15

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185747

PLUG,1"13/16-12

1шт.

18

89626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

Выбрано товаров: 20
