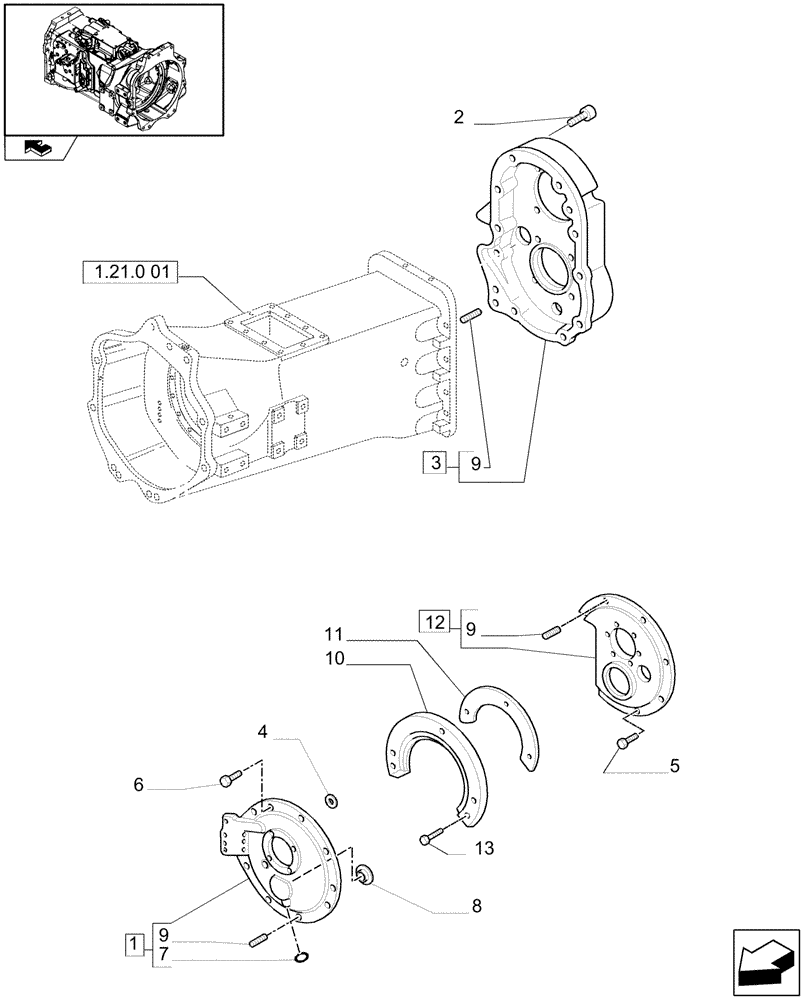

Запчасти Case IH MAXXUM 115 (1.21.0[02]) - TRANSMISSION 16X16 OR 17X16 - CLUTCH BOX COVERS AND RELATED PARTS (03) - TRANSMISSION

1

87726570

COVER

ASSY

1шт.

2

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

10шт.

3

47126590

COVER

1шт.

4

33915

SNAP RING,2.062", Int, #206

D=52

1шт.

5

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

8шт.

6

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

8шт.

6

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

7

81863105

SEAL

1шт.

8

81863544

INSULATOR

1шт.

9

83980528

DOWEL,12.71mm OD x 20.57mm L

6шт.

10

47126699

COVER

1шт.

11

87307436

SHIM,0.50mm Thk

0.50MM

1шт.

11

87307437

SHIM,0.60mm Thk

0.60MM

1шт.

11

87307438

SHIM,0.70mm Thk

0.70MM

1шт.

11

87307439

SHIM,0.80mm Thk

0.80MM

1шт.

11

87307440

SHIM,0.90mm Thk

0.90MM

1шт.

11

87307441

SHIM,1mm Thk

1.00MM

1шт.

11

87307442

SHIM,1.10mm Thk

1.10MM

1шт.

11

87307443

SHIM,1.20mm Thk

1.20MM

1шт.

11

87307444

SHIM,1.30mm Thk

1.30MM

1шт.

11

87307445

SHIM,1.40mm Thk

1.40MM

1шт.

11

87307446

SHIM,1.50mm Thk

1.50MM

1шт.

11

87307447

SHIM,1.60mm Thk

1.60MM

1шт.

11

87307448

SHIM,1.70mm Thk

1.70MM

1шт.

11

87307449

SHIM,1.80mm Thk

1.80MM

1шт.

11

87307450

SHIM,1.90mm Thk

1.90MM

1шт.

11

87307451

SHIM,2mm Thk

2.00MM

1шт.

11

87307452

SHIM,2.10mm Thk

2.10MM

1шт.

11

87307453

SHIM,2.20mm Thk

2.20MM

1шт.

11

87307454

SHIM,2.30mm Thk

2.30MM

1шт.

12

47126620

BEARING COVER

1шт.

13

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.
