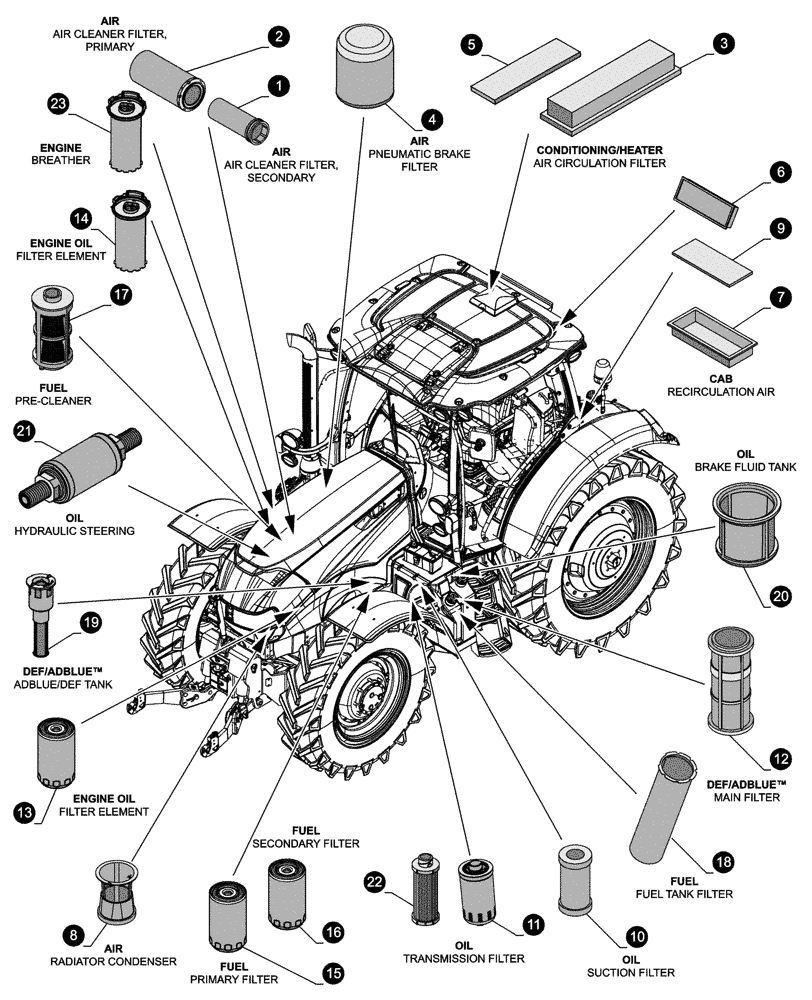

Запчасти Case IH MAXXUM 115 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary Cartridge, Every 1200 hours or 2 years

1шт.

2

82028977

AIR FILTER

Primary Cartridge, Every 600 hours

1шт.

Valid with Var. 335164, 336981 (758400) or Var. 335337, 336990 (758588) or Var. 336987, 392210 (392210) or Var. 336988, 392194 (392194)

1шт.

2

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Outer Cartridge, Every 600 hours

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually

1шт.

Valid with Var. 335322, 337396 (743729) or Var. 337395, 392209 (392209)

1шт.

4

87638772

CARTRIDGE,165mm L

Air Brakes, Every 1200 hours or every 2 years

1шт.

Valid with Var. 332727 (758447) or Var. 332737 (758448) or Var. 332739 (758449)

1шт.

5

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

1шт.

Valid with Var. 335322, 337396 (743729) or Var. 337395, 392209 (392209)

1шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

Valid with Var. 335322, 337396 (743729) or Var. 337395, 392209 (392209)

1шт.

7

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Heating, Conditioning, w/Low Profile Roof, Every 1200 hours or annually

1шт.

Valid with Var. 332285, 334959 (744985)

1шт.

8

47580879

FILTER

Radiator, Condenser

1шт.

Valid with Var. 335164, 336991 (758400) or Var. 336988 (392194) or Var. 392194

1шт.

9

87726696

CAB FILTER,359mm L x 109mm W x 10mm Thk

Inner Thin Cartridge, Every 1200 hours or annually

1шт.

Valid with Var. 332285, 334959 (744985)

1шт.

10

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron, Every 1200 hours or annually

1шт.

Valid with Var. 332351 (758538) or Var. 391223

1шт.

11

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 600 hours

1шт.

Valid with Var. 396247 or Var. 339245 (758442) or Var. 333247 (758549)

1шт.

12

47364243

FILTER

DeNOx2, Every 3600 hours or every 2 years

1шт.

Valid with Var. 330142 (758404) or Var. 335165 (758405) or Var. 335166 (758406) or Var. 390142

1шт.

13

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 300 hours

1шт.

14

47760847

ELEMENT

Cartridge Oil Filter, Every 300 hours

1шт.

Valid with Var. 335164, 336991 (758400) or Var. 335337, 336990 (758588) or Var. 336987, 392210 (392210) or Var. 336988,392194 (392194)

1шт.

15

47509565

FILTER

Primary,Spin-on, Water Separator, Every 600 hours

1шт.

16

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 600 hours

1шт.

17

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

18

84481152

FILTER SCREEN

Fuel Tank

1шт.

Valid with Var. 335165 (758405), 335166 (758406), 330142 (758404), 390142

1шт.

19

84363730

FILTER STRAINER

ADBLUE/DEF Tank, Every 3600 hours or every 2 years

1шт.

Valid with Var. 330142 (758404) or Var. 335165 (758405) or Var. 335166 (758406) or Var. 390142

1шт.

20

87491693

FILTER

Brake Fluid Tank, Every 1200 hours or every 2 years

1шт.

Valid with Var. 335207, 335208, 391630 (391630) or Var. 335209, 335211, 335212 (758479) or Var. 335213, 335214, 335216 (758480) or Var. 335217, 335219, 335220 (758481)

1шт.

21

47549546

FILTER, DEF

Hydraulic steering, Every 600 hours

1шт.

Valid with Var. 332351 (758538) or Var. 391223

1шт.

22

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 600 hours

1шт.

Valid with Var. 391223 or Var. 332351 (758538) or Var. 331331 (758539)

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

23

5801672465

Engine

FILTER

1шт.
