Запчасти Case IH MAXXUM 115 (41.216.AN[07]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING CYLINDER (41) - STEERING

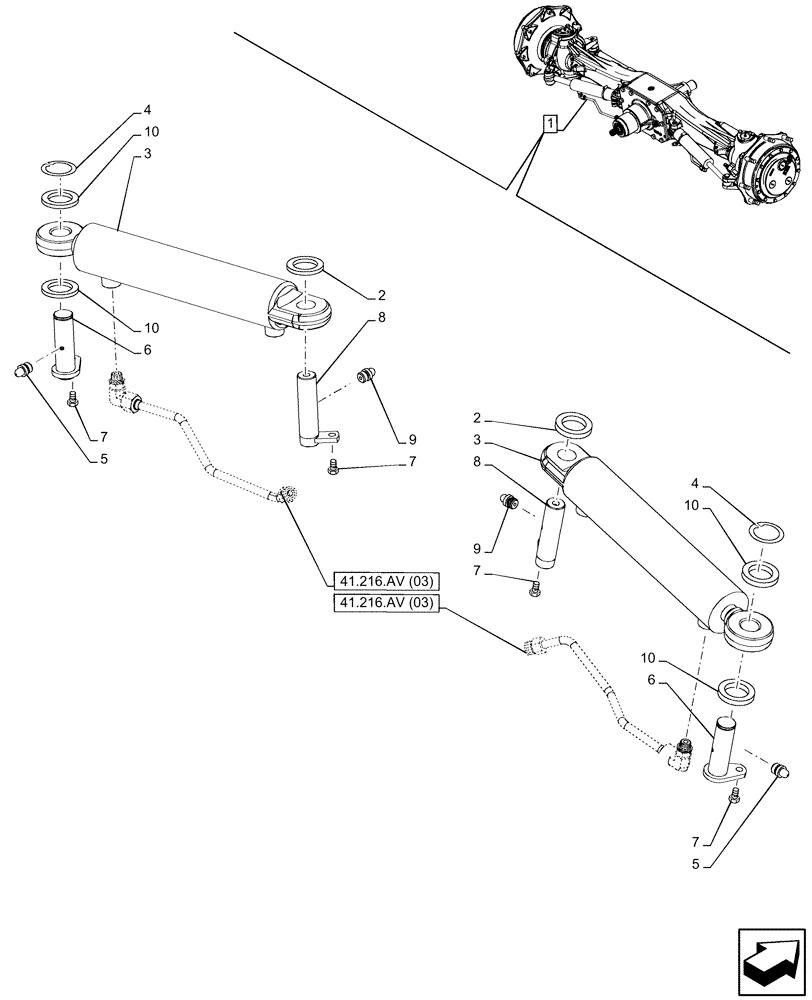

Схема запчастей Case IH MAXXUM 115 - (41.216.AN[07]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING CYLINDER (41) - STEERING
3
3
6
8
2
10
7
5
9
4
8
10
7
7
6
2
5
7
4
10
9
10
1
41.216.av (03)
41.216.av (03)

Артикул

Название

Примечание

Количество

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 10

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.108.AA (05), 25.108.AB (05), 25.108.AB (06), 25.108.AG (05), 25.108.AN (05), 41.216.AV (03), 55.047.AA (05)

1шт.

2

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

3

87546274

SERVO STEERING CYL

2шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

5171707

PIN,24.97mm OD x 91mm L

2шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

10

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

Выбрано товаров: 11
