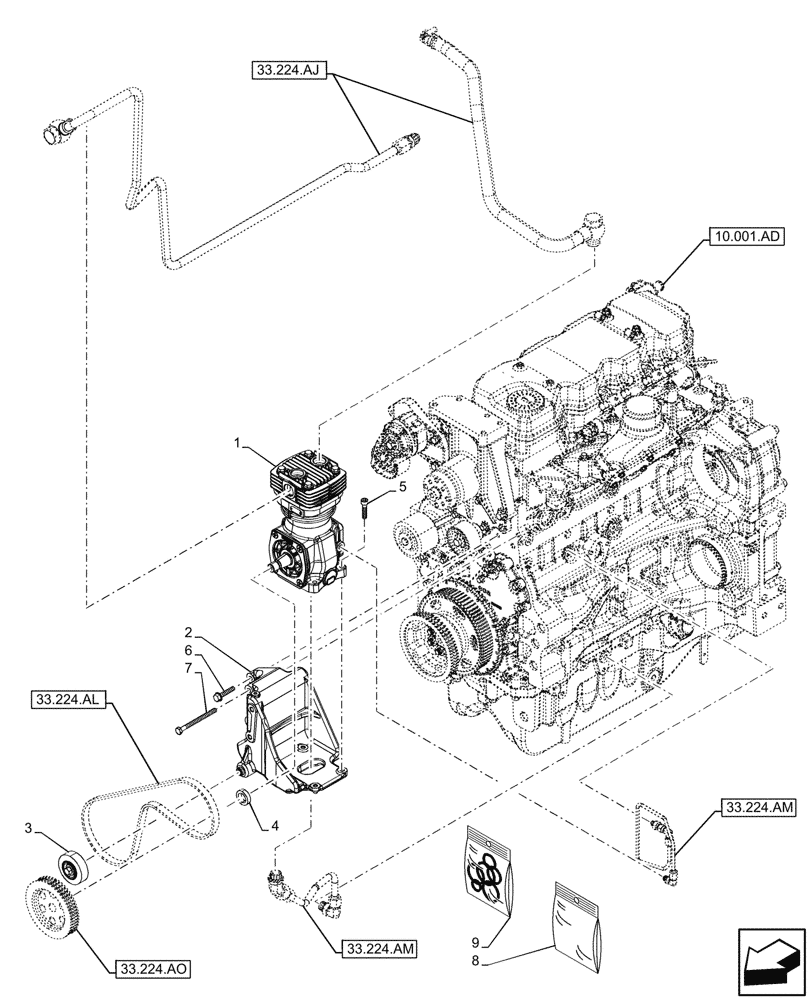

Запчасти Case IH MAXXUM 115 (33.224.AH) - VAR - 758447, 758448, 758449 - PNEUMATIC TRAILER BRAKE, COMPRESSOR (33) - BRAKES & CONTROLS

1

47606967

AIR COMPRESSOR,159ccm, 1.5Bar

1шт.

2

87802974

SUPPORT

1шт.

3

87803017

IDLER,65mm OD

1шт.

4

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

1шт.

5

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

6

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

7

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

8

47982987

PISTON ASSY

1шт.

9

47982982

SEAL KIT

Air Compressor

1шт.
