Запчасти Case IH MAXXUM 115 (25.122.AD[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM

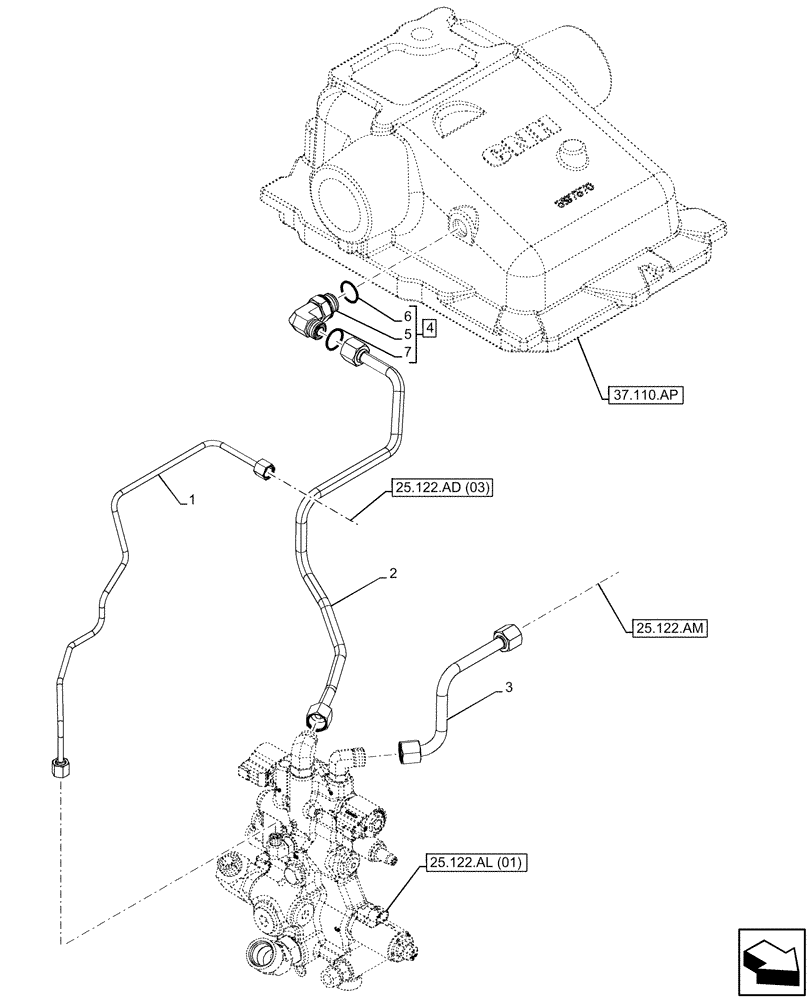

Схема запчастей Case IH MAXXUM 115 - (25.122.AD[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM
25.122.ad (03)
6
7
2
3
5
1
4
25.122.am
25.122.al (01)
37.110.ap

Артикул

Название

Примечание

Количество

1

47478012

PIPE

From Hyd Pump

1шт.

2

47603078

PIPE

Return, Axle Suspension Valve

1шт.

3

47478014

PIPE

Delivery, Axle Suspension Valve

1шт.

4

87670188

HYD CONNECTOR

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

Выбрано товаров: 7
