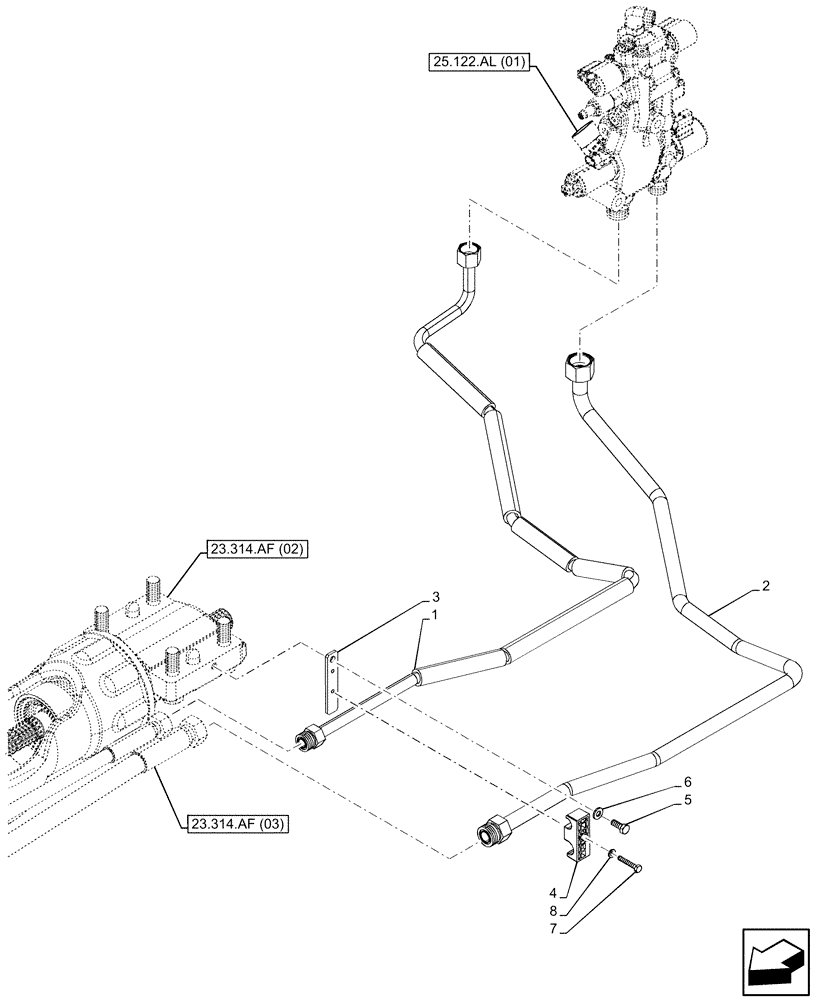

Запчасти Case IH MAXXUM 115 (25.122.AD[01]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CYLINDER, LINE (25) - FRONT AXLE SYSTEM

1

47508494

PIPE

Delivery, Axle Suspension Cylinder

1шт.

2

47508492

PIPE

Return, Axle Suspension Cylinder

1шт.

3

87636988

BRACKET

1шт.

4

87636992

CLAMP BRACKET

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

7

15212521

BOLT,Hex, M6 x 35mm, Cl 8.8, Full Thd

1шт.

8

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.
