Запчасти Case IH MAXXUM 115 (25.108.AN[05]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

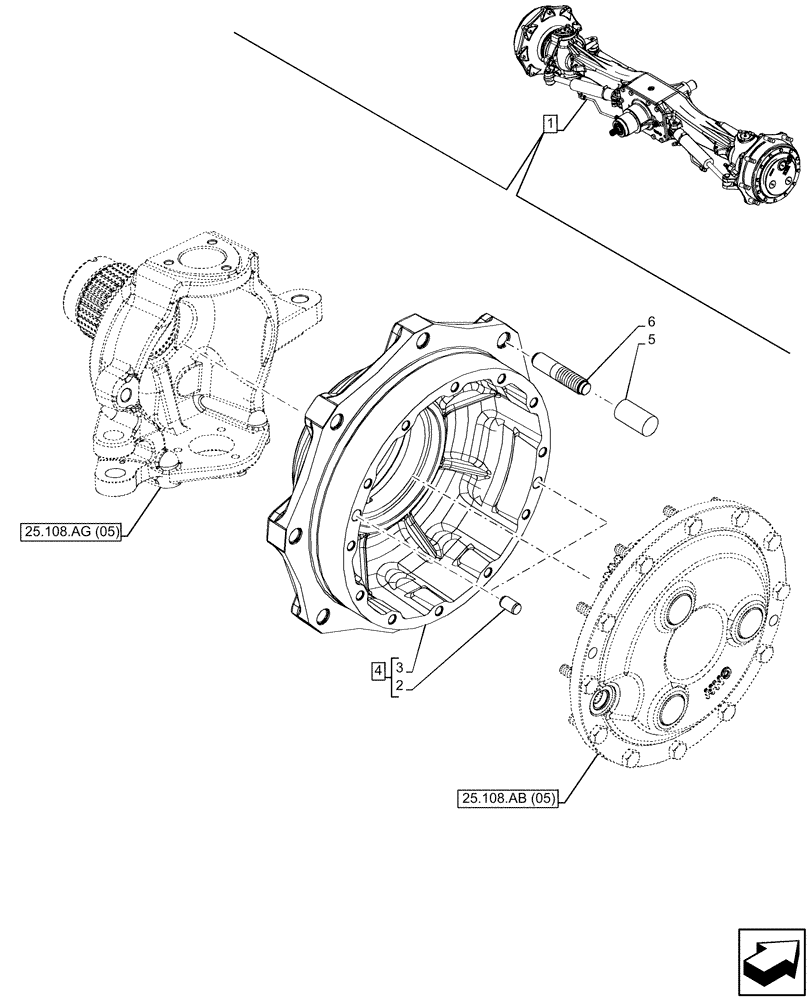

Схема запчастей Case IH MAXXUM 115 - (25.108.AN[05]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM
25.108.ag (05)
6
5
4
1
3
2
25.108.ab (05)

Артикул

Название

Примечание

Количество

1

87745935

LIVE FRONT AXLE

ASSY, Incl 2 - 6

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.108.AA (05), 25.108.AB (05), 25.108.AB (06), 25.108.AG (05), 41.216.AN (07), 41.216.AV (03), 55.047.AA (05)

1шт.

2

4985063

DOWEL,12mm OD x 20mm L

12mm x 20mm

2шт.

3

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

1шт.

4

84270400

HUB

ASSY, Incl 2, 3

1шт.

5

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

6

87618916

STUD

16шт.

Выбрано товаров: 7
