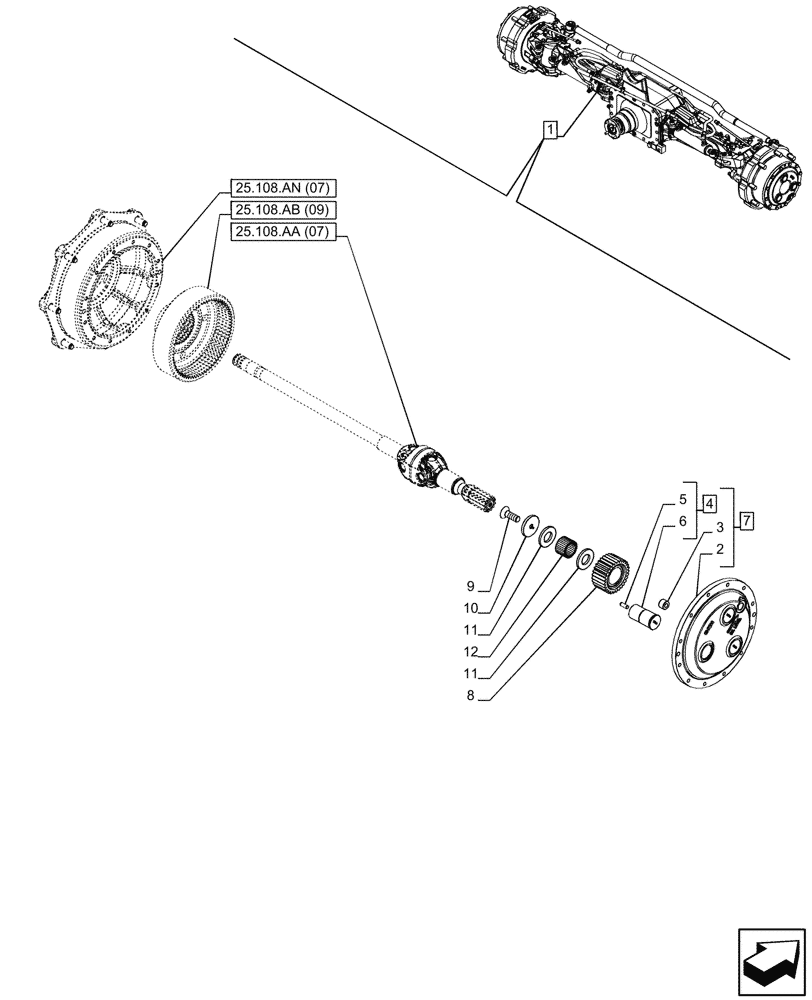

Запчасти Case IH MAXXUM 115 (25.108.AB[09]) - VAR - 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (07), 25.100.AD (07), 25.108.AA (07), 25.108.AG (07), 25.108.AN (07), 33.204.AD (03), 33.204.AD (04), 41.216.AN (09), 41.216.AV (09), 55.047.AA (07)

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 7

1шт.

3

87604978

BUSHING

1шт.

4

87471121

PIN

ASSY, Incl 5 (Qty 1), 6 (Qty 1)

3шт.

5

10333210

DOWEL,M4 x 10.00mm

3шт.

6

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

3шт.

7

87473022

PLANET CARRIER

ASSY, Incl 2 - 4

1шт.

8

87330345

IDLER PINION

3шт.

9

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

10

87681967

SPACER

3шт.

11

87330360

THRUST WASHER

6шт.

12

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

3шт.
