(25.108.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT

Запчасти Case IH MAXXUM 115 (25.108.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT (25) - FRONT AXLE SYSTEM

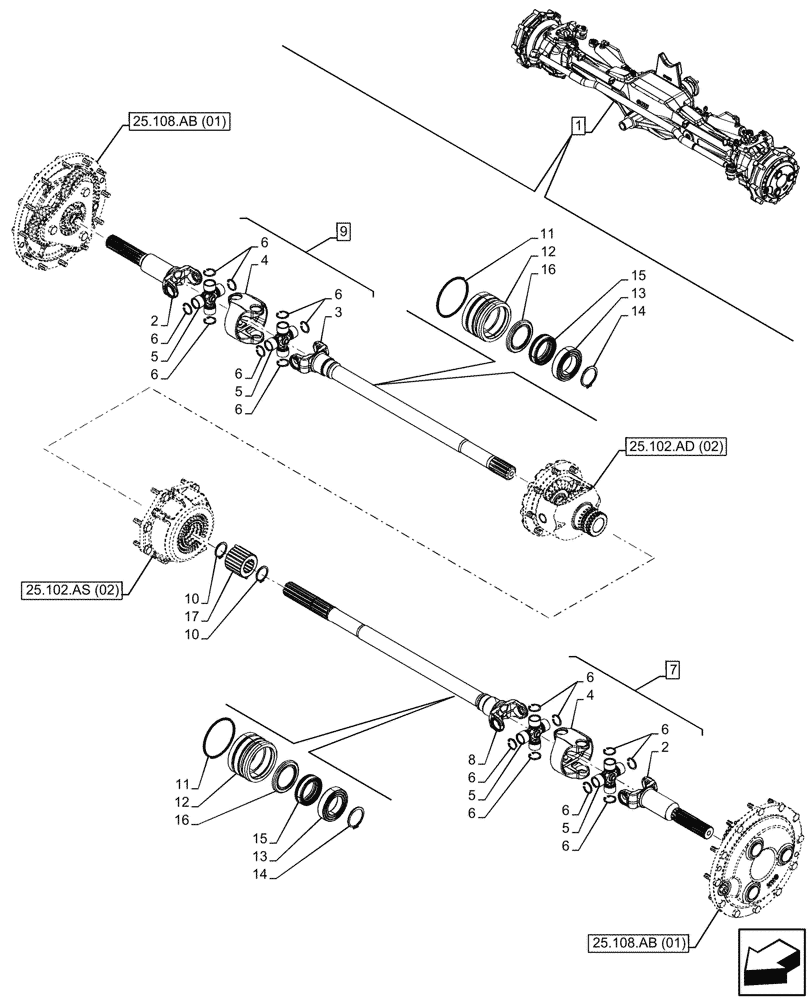

Схема запчастей Case IH MAXXUM 115 - (25.108.AA[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, SHAFT (25) - FRONT AXLE SYSTEM
25.102.as (02)
15
11
11
6
6
14
6
16
10
15
13
16
12
6
6
6
6
2
14
1
4
5
4
8
3
2
5
9
6
17
6
5
7
6
13
6
5
10
12
6
25.108.ab (01)
25.108.ab (01)
25.102.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 17

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.100.AD (02), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.216.AN (02), 55.047.AA (02)

1шт.

2

84201642

SHORT SHAFT FORK

1шт.

3

5197765

LONG SHAFT FORK,733.00mm

LH

1шт.

4

87361042

YOKE

1шт.

5

5191547

U-JOINT SPIDER

2шт.

6

5191548

CIRCLIP

8шт.

7

84194820

ARTICULATED SHAFT

ASSY, RH, Incl 2 (Qty1), 4 (Qty 1), 5 (Qty 2), 6 (Qty 8), 8

1шт.

8

5197763

LONG SHAFT FORK,671.00mm

RH

1шт.

9

84194811

SHAFT

ASSY, LH, Incl 2 (Qty1), 3, 4 (Qty 1), 5 (Qty 2), 6 (Qty 8)

1шт.

10

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

11

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

12

84197406

BUSHING

2шт.

13

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

2шт.

14

11068876

SNAP RING,M40, Ext

2шт.

15

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

2шт.

16

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

17

5153390

HUB

1шт.
