Запчасти Case IH MAXXUM 115 (25.102.AS[02]) - VAR - 758422, 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

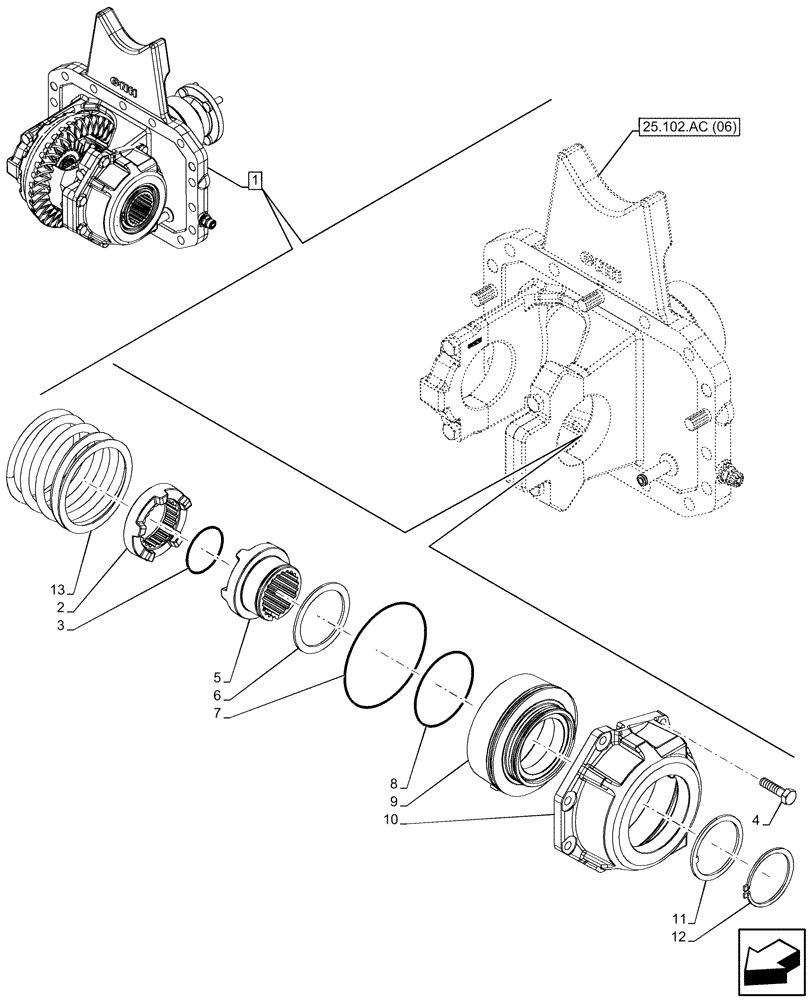

Схема запчастей Case IH MAXXUM 115 - (25.102.AS[02]) - VAR - 758422, 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
25.102.ac (06)
9
10
1
8
2
7
6
3
12
5
13
11
4

Артикул

Название

Примечание

Количество

1

87657522

DIFFERENTIAL ASSY

ASSY, Incl 2 - 13

1шт.

See also Differential Components in Figure 25.102.AC (05), 25.102.AC (06), 25.102.AC (07), 25.102.AC (08), 25.102.AD (02)

1шт.

2

5153349

SLEEVE

1шт.

3

5153351

SNAP RING,55.5mm ID

1шт.

4

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

5

5153350

SLEEVE,22T

1шт.

6

5153392

THRUST WASHER,72.5mm ID x 90mm OD x 2.8mm Thk

1шт.

7

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

8

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

9

5155169

PISTON

1шт.

10

5155167

HOUSING

1шт.

11

5153391

THRUST WASHER,67mm ID x 83mm OD x 3mm Thk

1шт.

12

11070376

SNAP RING,M70, Ext

1шт.

13

5154040

SPRING

1шт.

Выбрано товаров: 14
