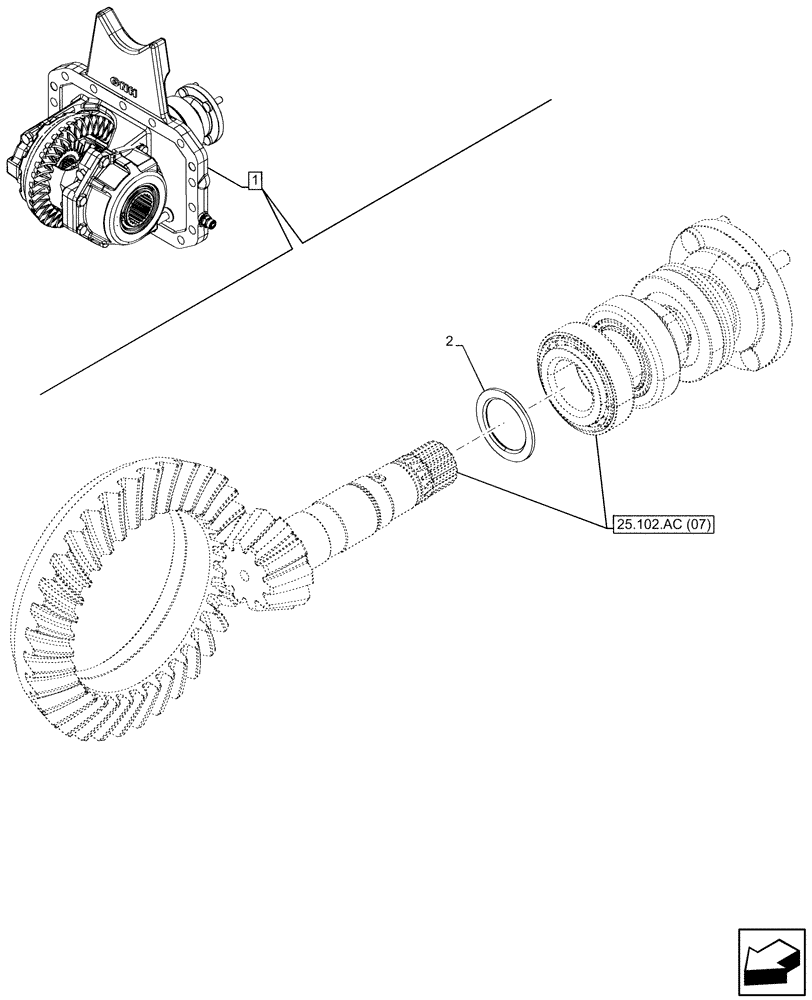

Запчасти Case IH MAXXUM 115 (25.102.AC[08]) - VAR - 758422, 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, DIFFERENTIAL, SHIM KIT (25) - FRONT AXLE SYSTEM

1

87657522

DIFFERENTIAL ASSY

ASSY, Incl 2

1шт.

See also Differential Components in Figure 25.102.AC (05), 25.102.AC (06), 25.102.AC (07), 25.102.AD (02), 25.102.AS (02)

1шт.

2

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

2

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

2

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

2

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

2

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

2

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

2

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

2

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

2

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

2

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

2

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

2

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

2

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.
