Запчасти Case IH MAXXUM 115 (25.100.AD[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HOUSING (25) - FRONT AXLE SYSTEM

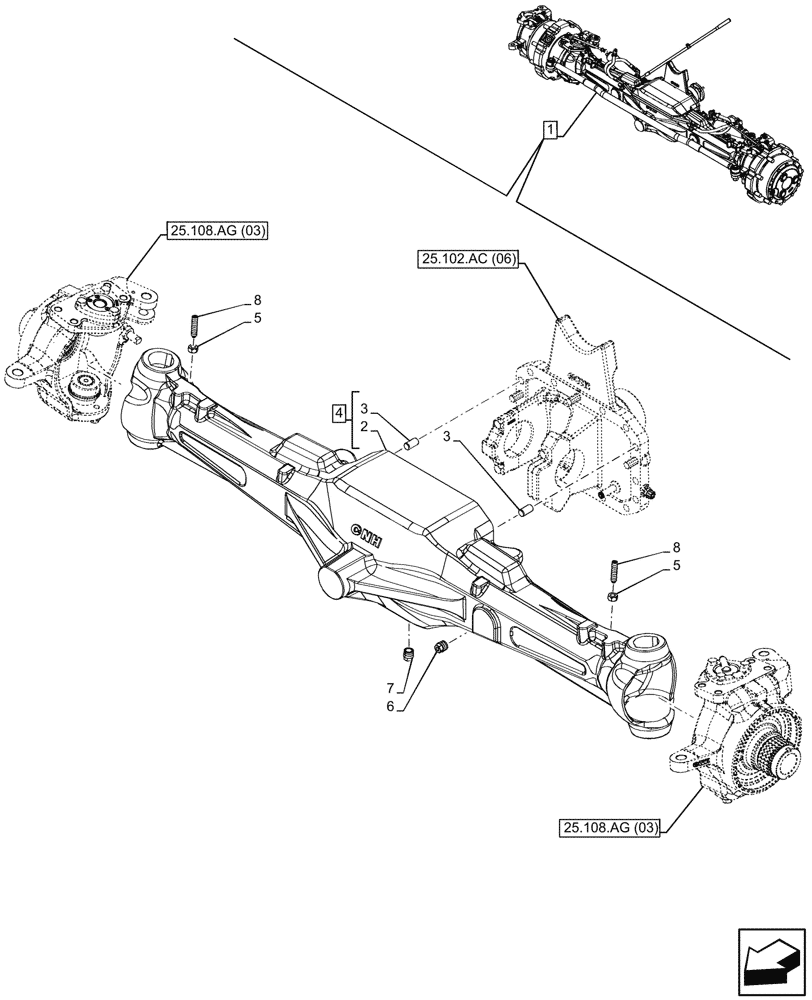

Схема запчастей Case IH MAXXUM 115 - (25.100.AD[03]) - VAR - 758423 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, HOUSING (25) - FRONT AXLE SYSTEM
25.102.ac (06)
5
3
7
8
8
6
4
1
5
2
3
25.108.ag (03)
25.108.ag (03)

Артикул

Название

Примечание

Количество

1

84181155

LIVE FRONT AXLE

ASSY, Incl 2 - 8

1шт.

See also Axle Components in Figure 25.100.AA (03), 25.108.AA (03), 25.108.AG (03), 25.108.AN (03), 33.204.AD (01), 33.204.AD (02), 41.216.AN (03), 55.047.AA (03)

1шт.

2

87633183

AXLE HOUSING

1шт.

3

5174376

DOWEL,M16 x 30

2шт.

4

87633190

AXLE HOUSING

ASSY, Incl 2, 3

1шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

1шт.

Выбрано товаров: 9
