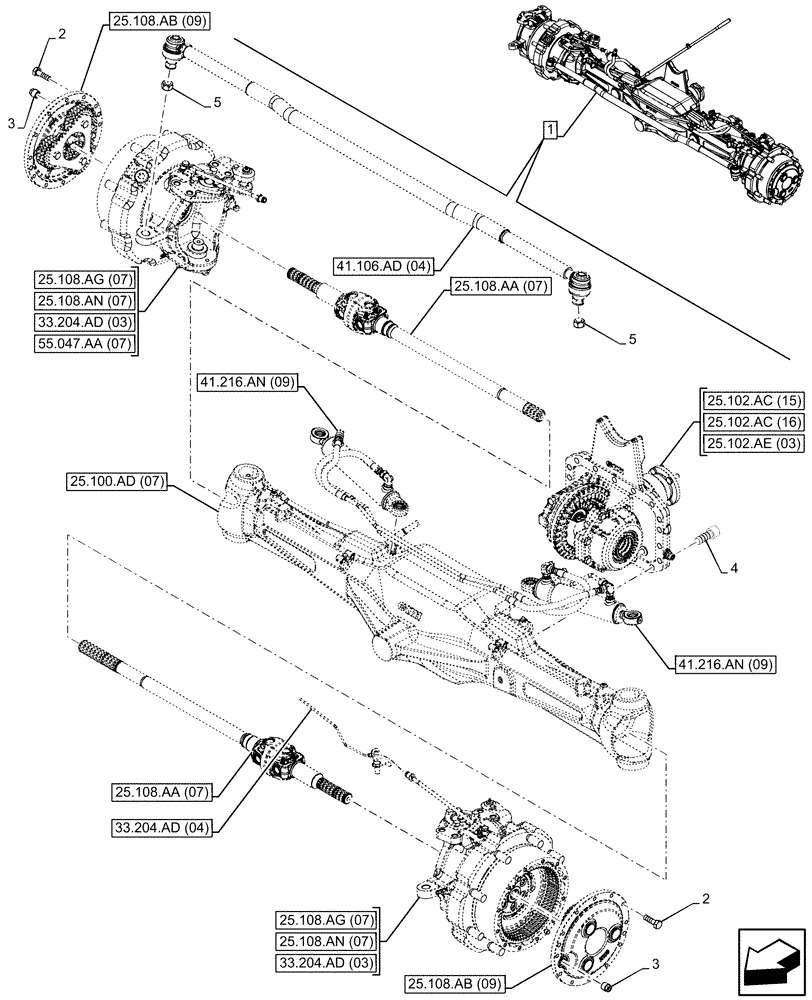

Запчасти Case IH MAXXUM 115 (25.100.AA[07]) - VAR - 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 5

1шт.

See also Axle Components in Figure 25.100.AD (07), 25.108.AA (07), 25.108.AB (09), 25.108.AG (07), 25.108.AN (07), 33.204.AD (03), 33.204.AD (04), 41.216.AN (09), 41.216.AV (09), 55.047.AA (07)

1шт.

2

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

3

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

4

14313734

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 10.9

4шт.

5

12575021

NUT,M18 x 1.5, Cl 10

2шт.
