(23.314.AH[02]) - VAR - 390409, 758425 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD

Запчасти Case IH MAXXUM 115 (23.314.AH[02]) - VAR - 390409, 758425 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM

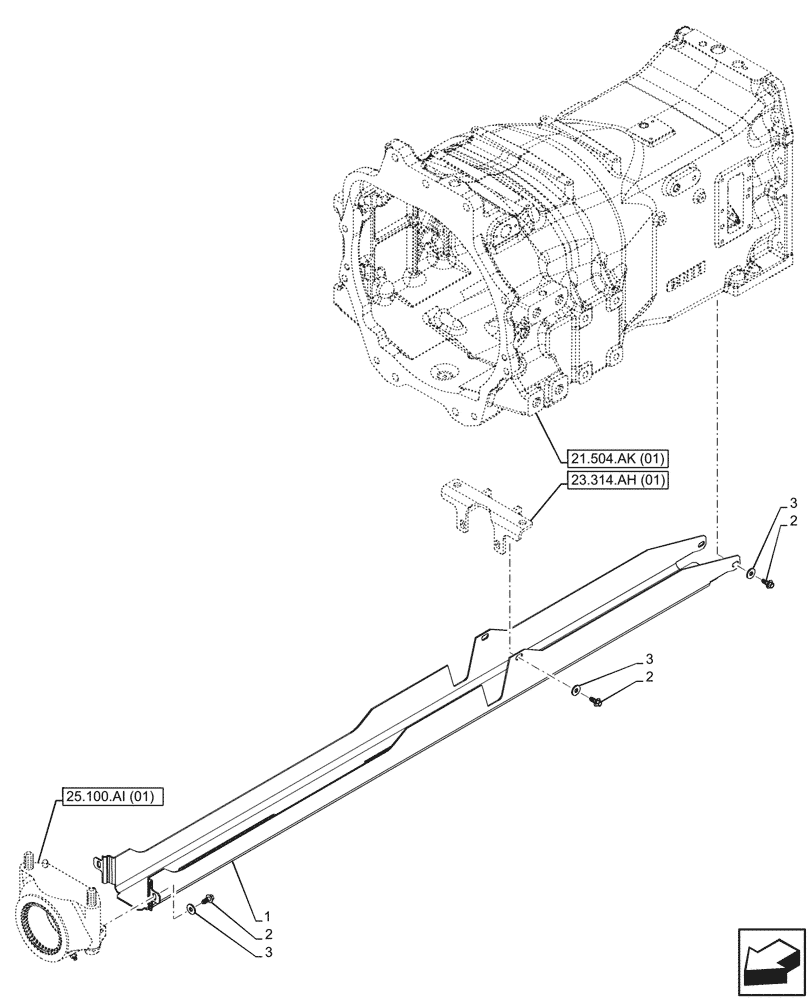

Схема запчастей Case IH MAXXUM 115 - (23.314.AH[02]) - VAR - 390409, 758425 - 4WD FRONT AXLE, DRIVE SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM
21.504.ak (01)
2
3
2
3
3
2
1
25.100.ai (01)
23.314.ah (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47509225

GUARD

1шт.

2

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

6шт.

3

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

6шт.

Выбрано товаров: 0
