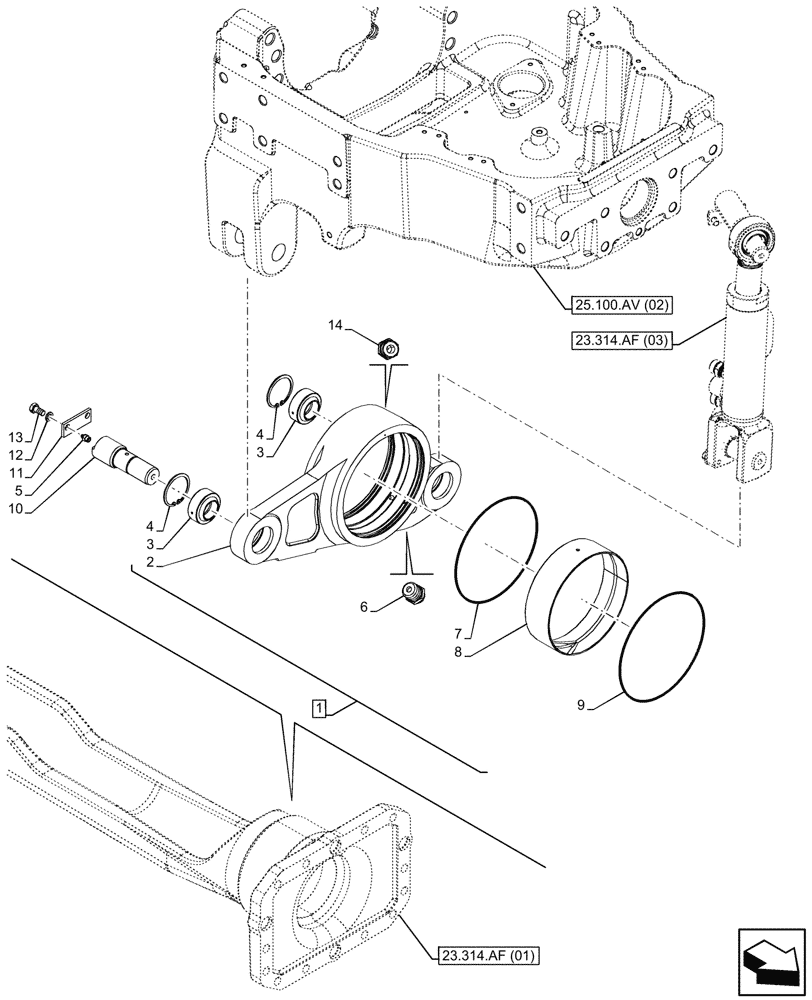

Запчасти Case IH MAXXUM 115 (23.314.AF[04]) - VAR - 758422, 758423, 758427, 758428 - DRIVE SHAFT, SUSPENDED FRONT AXLE, JOINT (23) - FOUR WHEEL DRIVE SYSTEM

1

87383938

ROD ASSY.

ASSY, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Casting, Incl in 1

1шт.

3

84263300

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm Thk

2шт.

4

11061076

SNAP RING,M62, Int

2шт.

5

13407211

LUBE NIPPLE,M10 x 1

1шт.

6

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

7

14483180

O-RING,0.21" Thk x 7.975" ID, -369, Cl 5, 75 Duro

1шт.

8

82020450

BUSHING,200mm ID x 205mm OD x 60mm L

1шт.

9

14483280

O-RING,8.225" ID x 0.210"

1шт.

10

87305641

PIN,44mm OD x 136mm L

1шт.

11

82016870

BRACKET

1шт.

12

85700672

LOCK WASHER,M10

2шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

14

13408411

LUBE NIPPLE,90 Degree , M10 x1

1шт.
