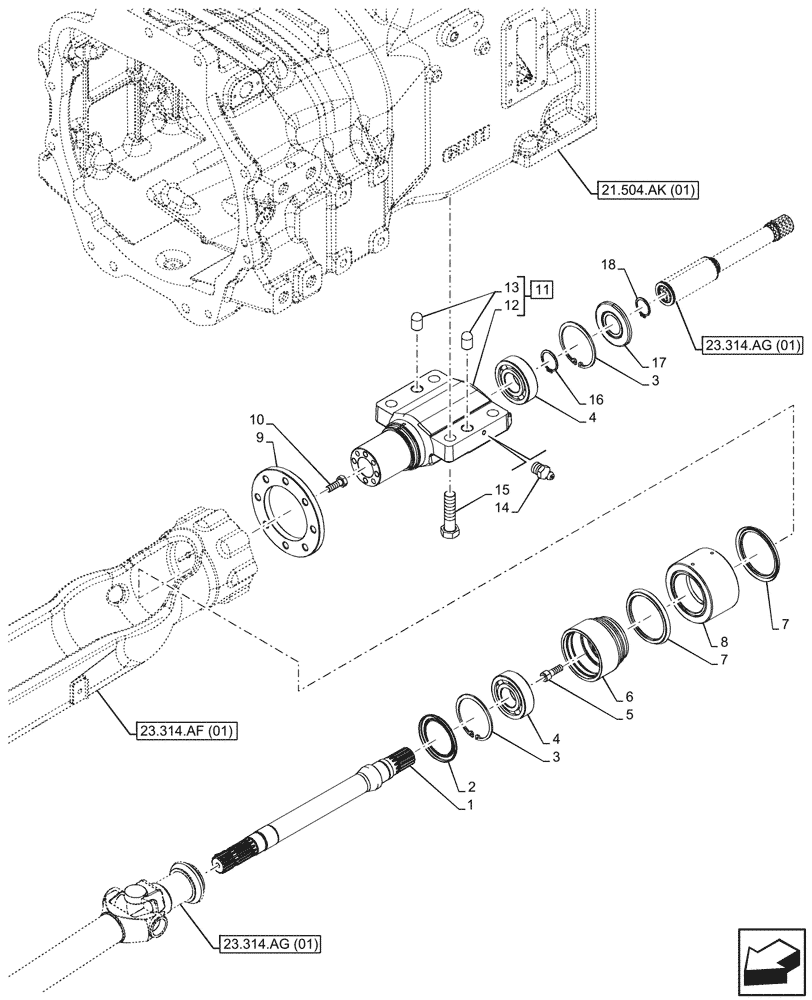

Запчасти Case IH MAXXUM 115 (23.314.AF[02]) - VAR - 758422, 758423, 758427, 758428 - DRIVE SHAFT, SUSPENDED FRONT AXLE, INTERMEDIATE AXLE (23) - FOUR WHEEL DRIVE SYSTEM

1

5197193

SHAFT

1шт.

2

5198541

PLATE,62.2mm ID x 85mm OD x 1mm Thk

1шт.

3

11061976

SNAP RING,M80, Int

2шт.

4

28996690

BALL BEARING,35mm x 80mm x 21mm

1шт.

5

14833634

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

6

5197208

SUPPORT

1шт.

7

5197676

SEAL,80mm ID x 100mm OD x 5mm Thk

2шт.

8

47132210

BALL JOINT

1шт.

9

5197569

PLATE

1шт.

10

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

11

5198725

SUPPORT

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket, Incl in 11

1шт.

13

82020394

PIN,M18 x 30.00mm

2шт.

14

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

15

14272134

LOCK BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

4шт.

16

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

17

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.

18

11067876

SNAP RING,M30, Ext

1шт.
