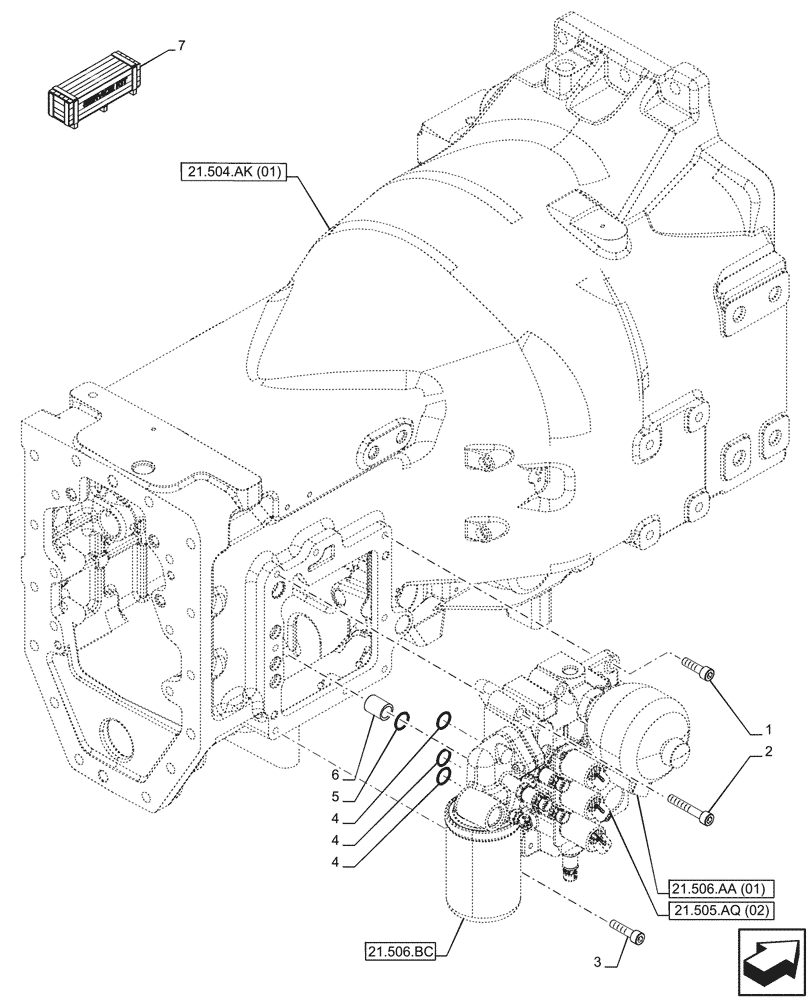

Запчасти Case IH MAXXUM 115 (21.505.AQ[01]) - VAR - 396247, 758442, 758549 - TRANSMISSION CONTROL VALVE, MOUNTING (21) - TRANSMISSION

1

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

2

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

3шт.

3

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

4

14453180

O-RING,12.42mm ID x 1.78mm

3шт.

5

14453380

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

3шт.

6

47574041

UNION,11mm ID x 13mm ID x 14mm L

3шт.

7

47798576

GEARBOX

Transmission ASSY, Incl 1 - 6

1шт.

See all the Included Components by Searching for the PN 47798576

1шт.
