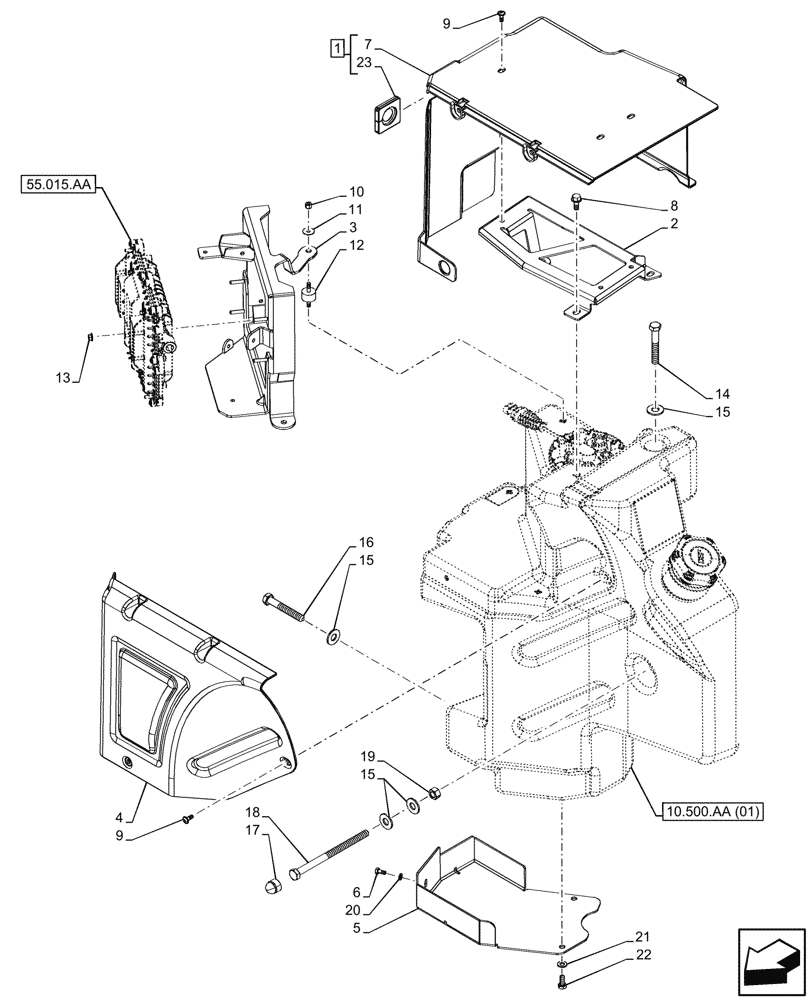

Запчасти Case IH MAXXUM 115 (10.500.AA[02]) - VAR - 390142, 758404, 758405, 758406, 758922, 758923 - DEF/ADBLUE™ TANK (10) - ENGINE

1

47898299

ASSY, Incl 7, 23

COVER

1шт.

2

47634697

FRAME

1шт.

3

47683036

BRACKET

1шт.

4

47634623

LID

1шт.

5

47471355

SHIELD

1шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

7

47726503

COVER

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

9

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

7шт.

10

12574211

NUT,M6 x 1, Cl 8

3шт.

11

12647701

WASHER,6.15mm ID x 21mm OD x 1mm Thk

3шт.

12

84341086

DAMPER,M6 x 51mm, 25mm OD

3шт.

13

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

14

350460

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

2шт.

15

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

5шт.

16

11113931

SCREW,Hex, M12 x 85mm, Cl 10.9

1шт.

17

84291550

CAP

2шт.

18

15542421

SCREW,Hex, M12 x 1.25 x 180, 8.8

1шт.

19

18711711

NUT,M12 x 1.25, Cl 8

1шт.

20

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

22

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

2шт.

23

47377358

GROMMET,25mm ID, Black

1шт.
