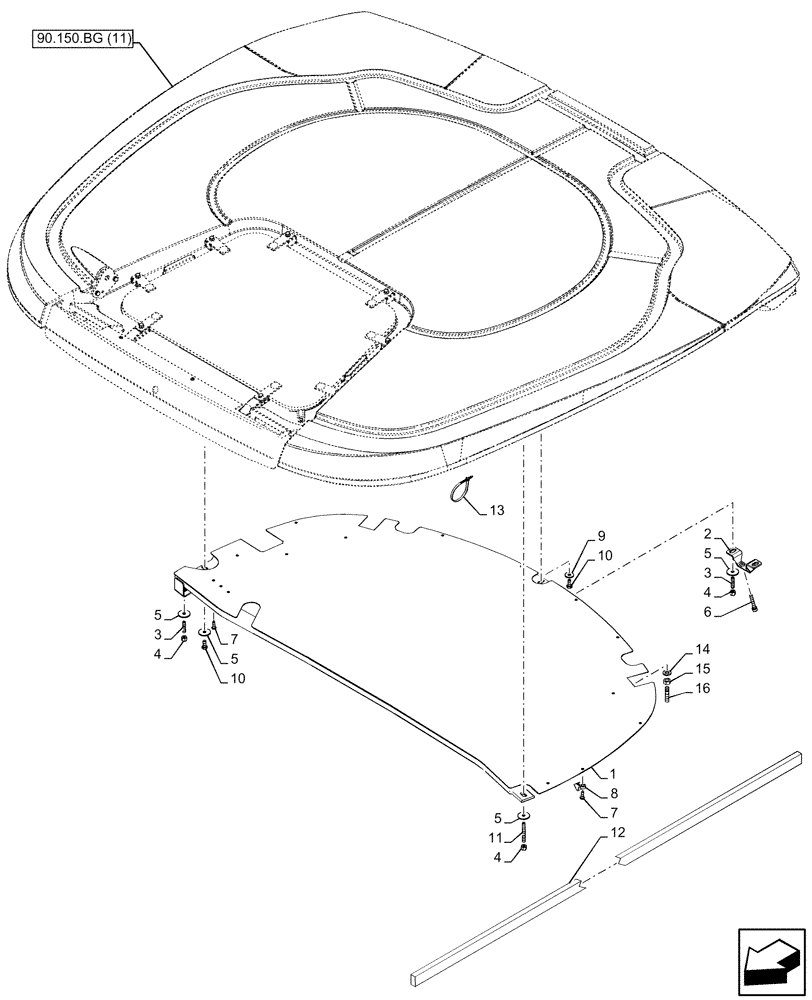

Запчасти Case IH MAXXUM 115 (90.150.BG[12]) - VAR - 744985 - CAB ROOF, LOW PROFILE ROOF, REINFORCEMENT, EU (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84592356

REINFORCEMENT

1шт.

2

84470625

PLATE

1шт.

3

11500321

BOLT,M6 x 18, 8.8, ZND

3шт.

4

12574211

NUT,M6 x 1, Cl 8

2шт.

5

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

4шт.

6

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

2шт.

7

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

18шт.

8

81864285

CLIP,M6, Black

12шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

10

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

11

11501224

STUD,M6 x 1 x 40mm L1 x 9mm L2, Cl 8.8

1шт.

12

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

1шт.

13

82028498

CABLE TIE

12шт.

14

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

9706690

NUT,M8 x 1.25, Cl 8

4шт.

16

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.
