(90.124.AE[08]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, MOUNTING

Запчасти Case IH MAXXUM 115 (90.124.AE[08]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

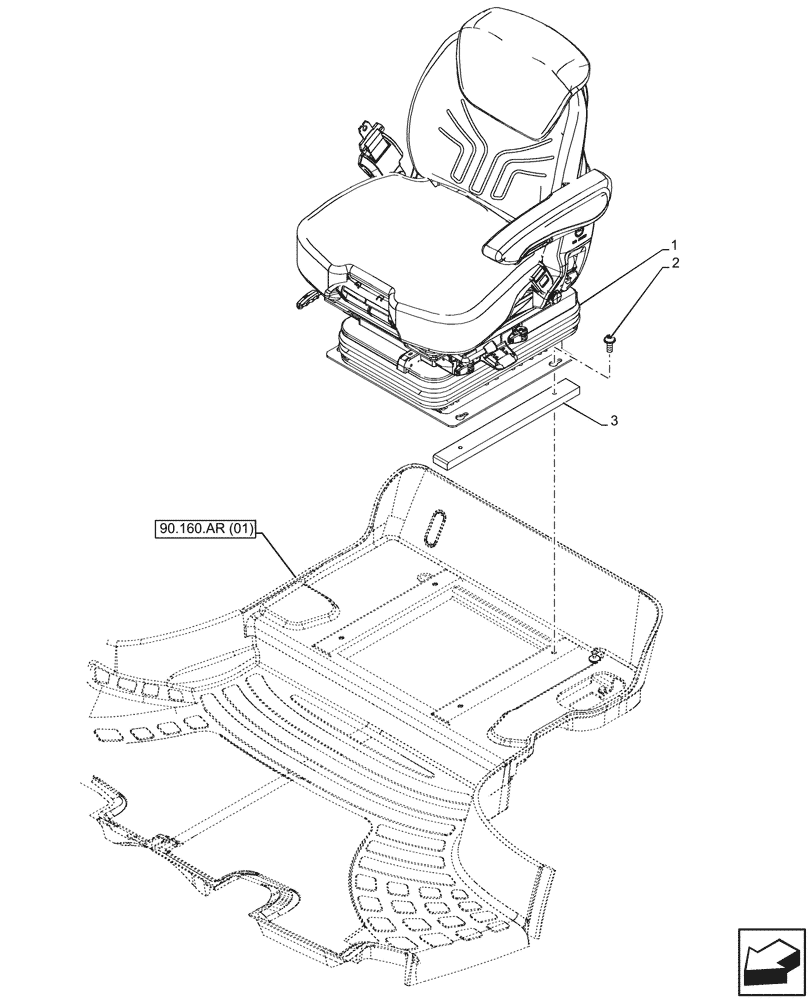

Схема запчастей Case IH MAXXUM 115 - (90.124.AE[08]) - VAR - 391285 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ar (01)
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725244

DRIVER SEAT

1шт.

2

47875286

SCREW,Torx, Pan HD, M8 x 38mm, Cl 8.8

4шт.

3

47772307

SPACER,422mm L x 45mm W x 20mm Thk

2шт.

Выбрано товаров: 3
