Запчасти Case IH MAXXUM 115 (90.116.AG[06]) - VAR - 743707, 743708 - MUDGUARD, W/ WIDE FENDERS, LEFT SIDE - END YR 06-DEC-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS

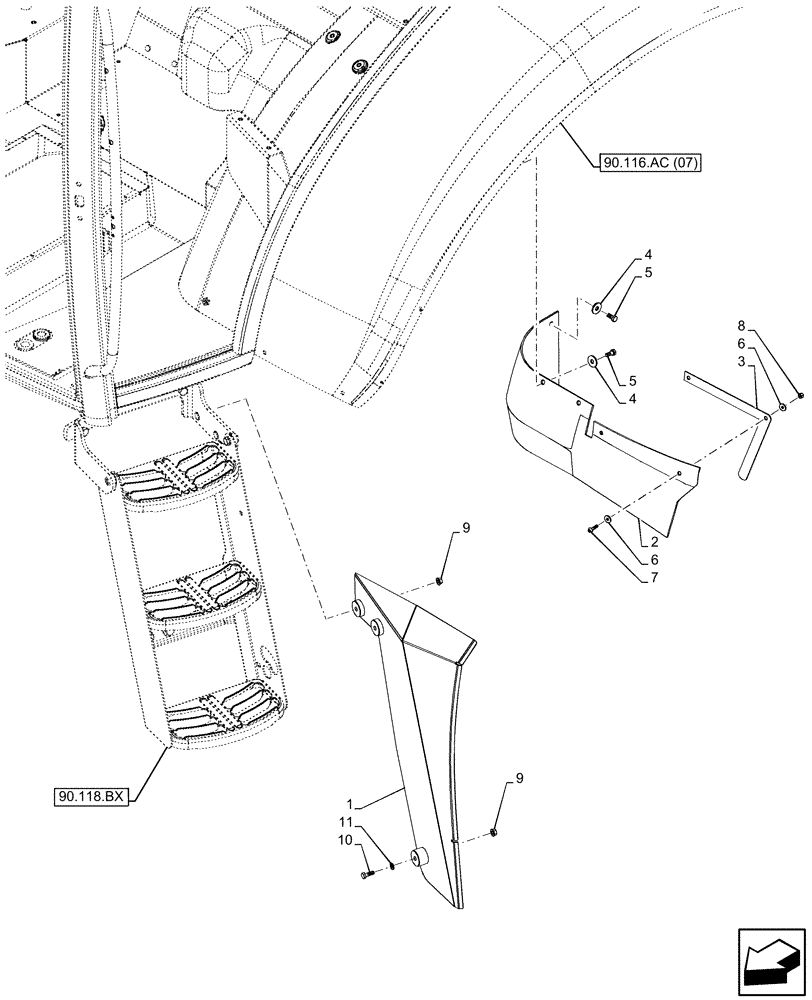

Схема запчастей Case IH MAXXUM 115 - (90.116.AG[06]) - VAR - 743707, 743708 - MUDGUARD, W/ WIDE FENDERS, LEFT SIDE - END YR 06-DEC-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (07)
9
6
11
1
2
3
10
4
6
9
5
5
8
7
4
90.118.bx

Артикул

Название

Примечание

Количество

1

47649188

GUARD

1шт.

2

87705290

MUDFLAP

1шт.

3

87705291

SUPPORT

1шт.

4

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

3шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

7

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

1шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 11
