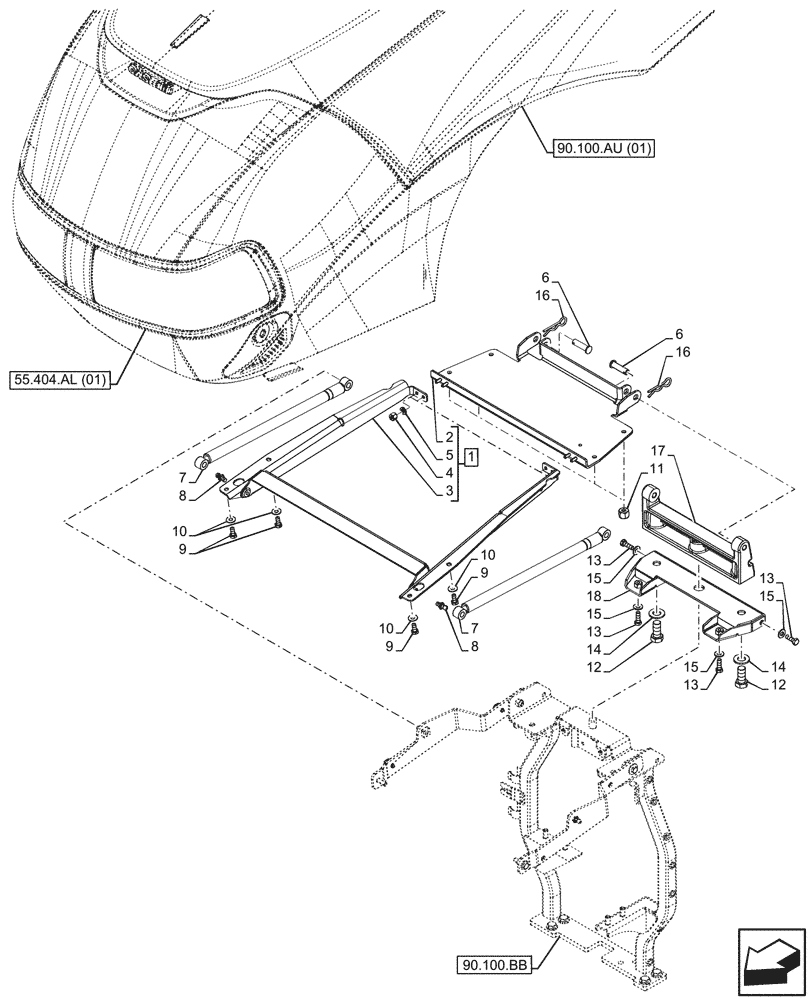

Запчасти Case IH MAXXUM 115 (90.102.AD[01]) - VAR - 392209, 743729, 744985 - HOOD, GAS STRUT - END YR 14-JAN-2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47798592

HINGE

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Hinge, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Hinge, Incl in 1

1шт.

4

12574211

NUT,M6 x 1, Cl 8

4шт.

5

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

4шт.

6

87353680

PIN,12.2mm OD x 44mm L

2шт.

7

84277822

GAS STRUT

2шт.

8

83952214

BALL STUD,M8 x 29.5mm OAL

2шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

4шт.

11

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

12

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

13

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

14

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

2шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

17

87353681

HINGE

1шт.

18

47658787

BRACKET

1шт.
