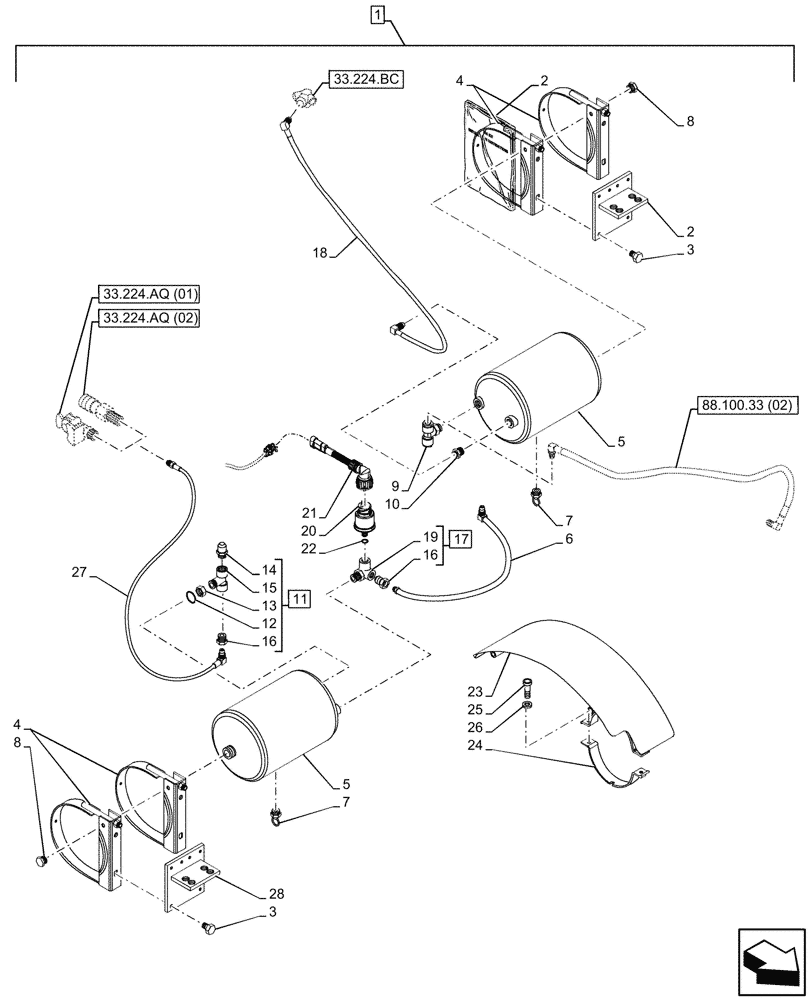

Запчасти Case IH MAXXUM 115 (88.100.33[03]) - DIA KIT, PNEUMATIC TRAILER BRAKE (88) - ACCESSORIES

1

718264034

DIA KIT, TRACTOR

Pneumatic Air Brake, Incl 2 - 28

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84545775

BRACKET

1шт.

3

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

8шт.

4

82038451

COLLAR CLAMP,206mm ID

4шт.

5

82020479

AIR RESERVOIR

2шт.

6

47444791

TUBE

Crossover

1шт.

7

82004266

DRAIN

2шт.

8

47899949

PLUG

2шт.

9

82038457

TEE

1шт.

10

82036156

FITTING,M22 x 1.5 x NG12

1шт.

11

47444789

ELBOW

ASSY, Incl 12 - 15, 16 (Qty 1)

1шт.

12

82039003

O-RING

1шт.

13

82039004

LOCK NUT

1шт.

14

87345096

FITTING,M16 x 1.5 x M22 x 1.5

1шт.

15

82038888

HYD CONNECTOR

1шт.

16

82034157

ADAPTER

2шт.

17

47591367

ELBOW

ASSY, Incl 16 (Qty 1), 19

1шт.

18

87337365

TUBE,10 mm OD x 1150 mm L

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 17

1шт.

20

87564377

SENSOR,M12 x 1.5

1шт.

21

87564372

WIRE HARNESS

1шт.

22

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

23

84596204

GUARD

1шт.

24

82035811

CLAMP

1шт.

25

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

26

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

27

87337362

FLEXIBLE HOSE

1шт.

28

84545773

BRACKET

1шт.
