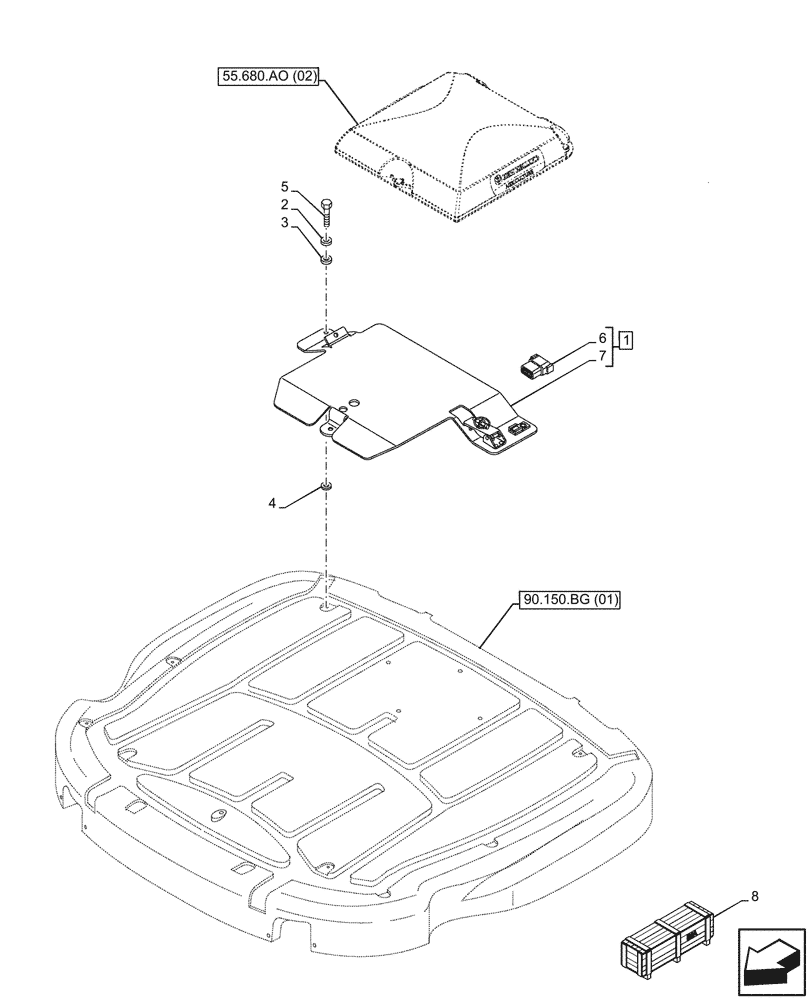

Запчасти Case IH MAXXUM 115 (55.680.AO[04]) - VAR - 743812 - AUTOGUIDANCE, RADAR, SUPPORT (55) - ELECTRICAL SYSTEMS

1

47693908

BRACKET

ASSY, Incl 6, 7

1шт.

2

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

4

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

3шт.

5

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

3шт.

6

87641584

MULTIPOLE CONNECTOR,12 Pole

1шт.

7

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

8

718084024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3.5 Axle, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
