(55.512.CS[09]) - VAR - 390445, 758571 - GARU ARMREST, ELECTRIC SYSTEM CONTROL, SWITCH

Запчасти Case IH MAXXUM 115 (55.512.CS[09]) - VAR - 390445, 758571 - GARU ARMREST, ELECTRIC SYSTEM CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS

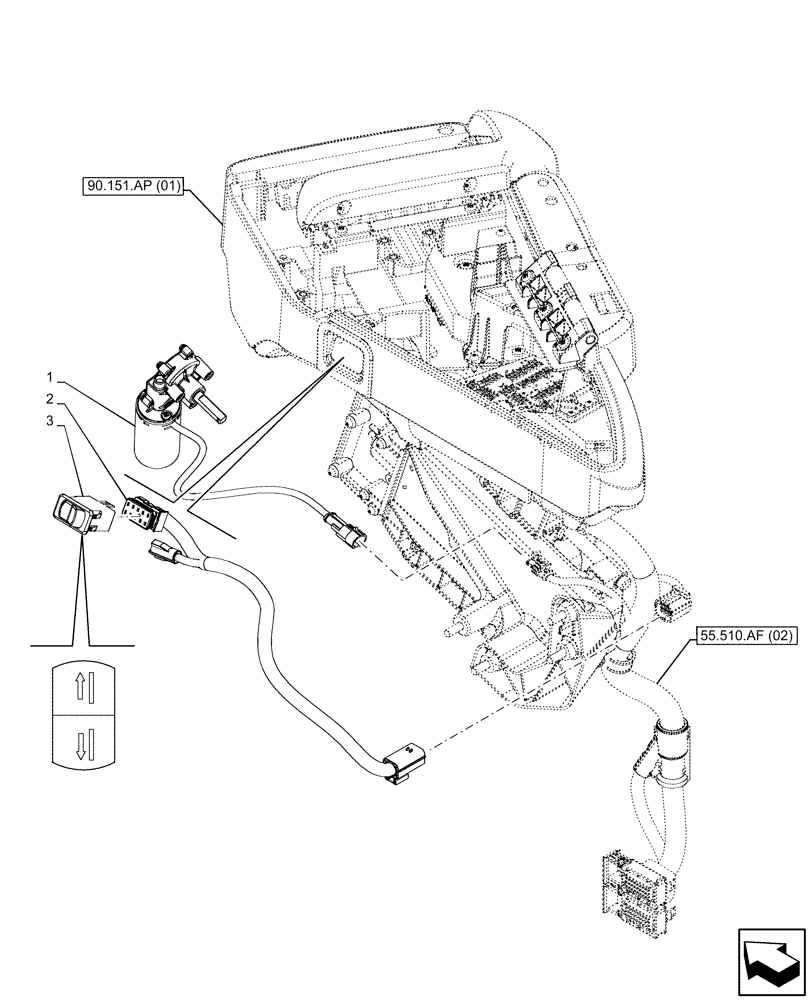

Схема запчастей Case IH MAXXUM 115 - (55.512.CS[09]) - VAR - 390445, 758571 - GARU ARMREST, ELECTRIC SYSTEM CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS
90.151.ap (01)
1
2
3
55.510.af (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84235755

ELECTRIC MOTOR,12V

Electric Adjustment

1шт.

2

84195895

WIRE HARNESS

Electric Adjustment

1шт.

3

87494094

SWITCH ASSY

Rocker, Garu Electric Adjustment

1шт.

Выбрано товаров: 3
