Запчасти Case IH MAXXUM 115 (55.512.AA[14]) - VAR - 743729 - HIGH PROFILE ROOF, W/O HIGH VISIBILITY PANEL, RADIO, ANTENNA, ST. VALENTIN - END YR 23-MAY-2016 (55) - ELECTRICAL SYSTEMS

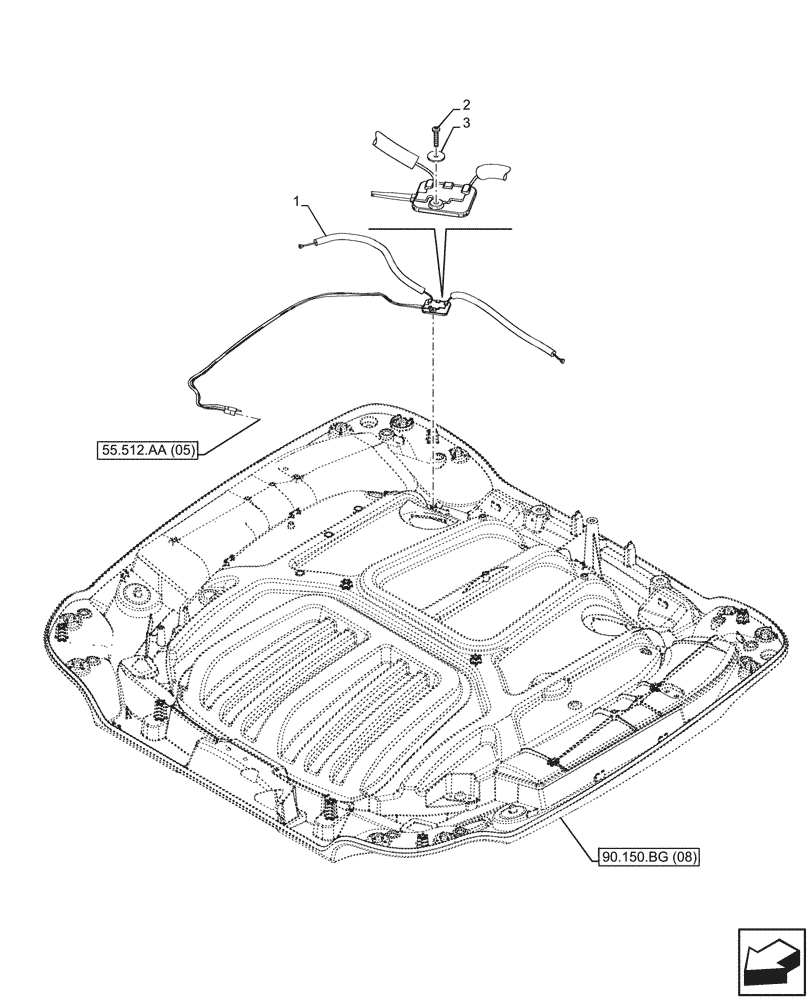

Схема запчастей Case IH MAXXUM 115 - (55.512.AA[14]) - VAR - 743729 - HIGH PROFILE ROOF, W/O HIGH VISIBILITY PANEL, RADIO, ANTENNA, ST. VALENTIN - END YR 23-MAY-2016 (55) - ELECTRICAL SYSTEMS
55.512.aa (05)
2
1
3
90.150.bg (08)

Артикул

Название

Примечание

Количество

1

47542683

ANTENNA

1шт.

2

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

1шт.

3

12624107

WASHER,5.15mm ID x 22mm OD x 2mm Thk

1шт.

Выбрано товаров: 3
