Запчасти Case IH MAXXUM 115 (55.510.BM[04]) - VAR - 743702 - CAB, POWER SOCKET, 12V, FRONT LOADER, EU (55) - ELECTRICAL SYSTEMS

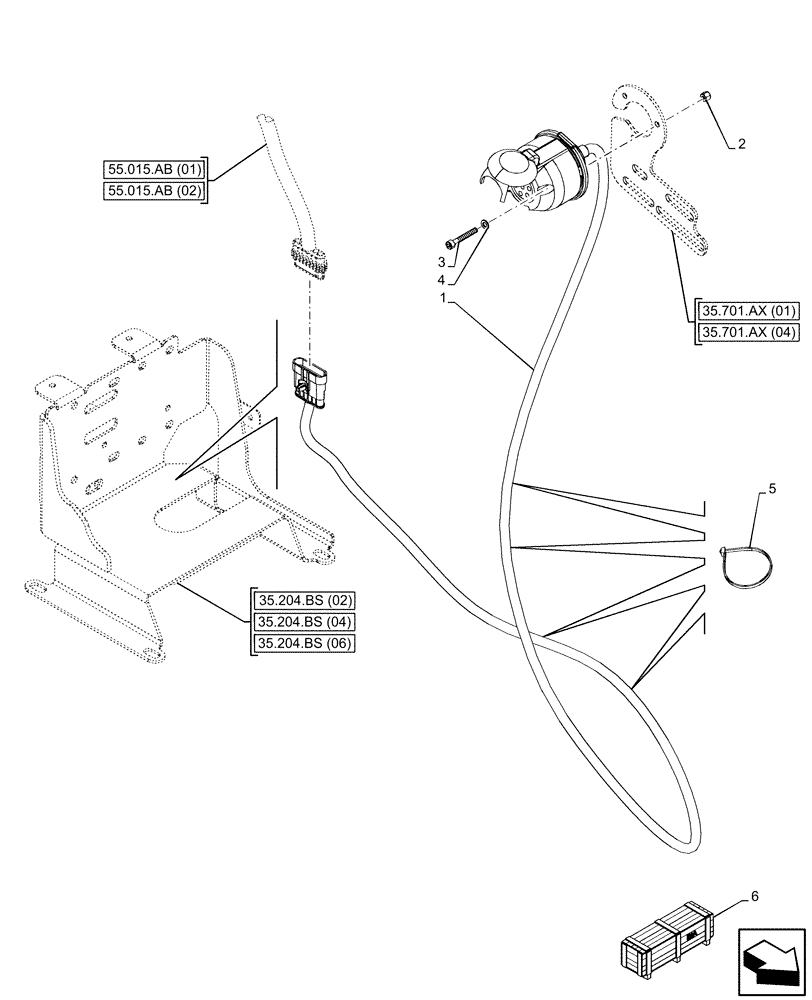

Схема запчастей Case IH MAXXUM 115 - (55.510.BM[04]) - VAR - 743702 - CAB, POWER SOCKET, 12V, FRONT LOADER, EU (55) - ELECTRICAL SYSTEMS
35.204.bs (06)
2
3
1
6
5
4
35.701.ax (01)
35.204.bs (04)
35.204.bs (02)
55.015.ab (01)
35.701.ax (04)
55.015.ab (02)

Артикул

Название

Примечание

Количество

1

47698798

WIRE HARNESS

Front Loader

1шт.

2

12574111

NUT,M5 x .8, Cl 8

3шт.

3

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

3шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

5

14560187

COLLAR,199mm L

4шт.

6

719705064

DIA KIT, TRACTOR

European Loader Ready, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
