Запчасти Case IH MAXXUM 115 (55.510.AH[09]) - VAR - 743729 - CAB ROOF, HARNESS, HIGH PROFILE ROOF, ST. VALENTIN (55) - ELECTRICAL SYSTEMS

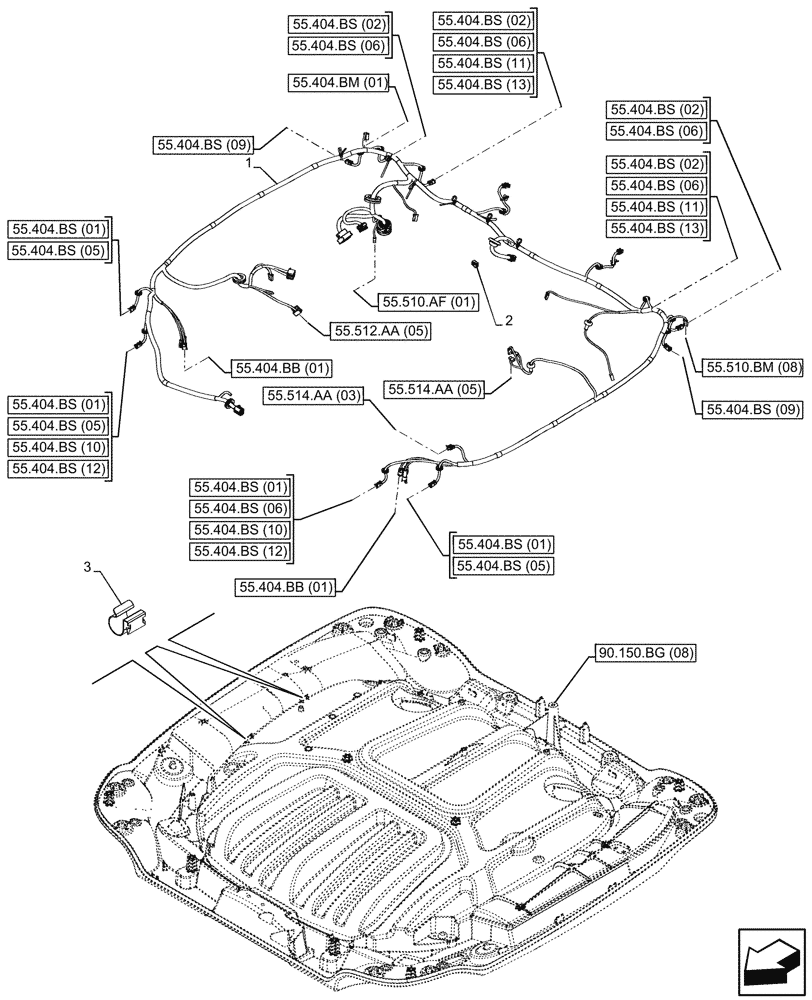

Схема запчастей Case IH MAXXUM 115 - (55.510.AH[09]) - VAR - 743729 - CAB ROOF, HARNESS, HIGH PROFILE ROOF, ST. VALENTIN (55) - ELECTRICAL SYSTEMS
90.150.bg (08)
2
1
3
55.404.bs (11)
55.404.bs (11)
55.404.bs (05)
55.404.bs (05)
55.404.bs (05)
55.404.bm (01)
55.404.bs (09)
55.404.bs (09)
55.514.aa (03)
55.404.bs (01)
55.404.bs (01)
55.404.bs (06)
55.404.bs (06)
55.404.bs (06)
55.404.bs (06)
55.404.bs (06)
55.510.af (01)
55.404.bs (01)
55.404.bs (01)
55.404.bs (02)
55.510.bm (08)
55.514.aa (05)
55.404.bs (12)
55.404.bs (12)
55.404.bb (01)
55.404.bb (01)
55.404.bs (02)
55.404.bs (02)
55.404.bs (02)
55.512.aa (05)
55.404.bs (10)
55.404.bs (10)
55.404.bs (13)
55.404.bs (13)

Артикул

Название

Примечание

Количество

1

47695262

WIRE HARNESS

Roof, Years: -01-DEC-15

1шт.

1

47880408

WIRE HARNESS

Roof, Years: 02-DEC-15-23-MAY-16

1шт.

1

47915893

WIRE HARNESS

Roof, Start Year: 24-MAY-16

1шт.

2

47695279

CLIP,3.0-13.0mm Harness, 3.5-4.5mm Thk, Black

19шт.

3

47644287

CLIP,10.3mm Harness

2шт.

Выбрано товаров: 5
