Запчасти Case IH MAXXUM 115 (55.404.BS[07]) - VAR - 758593, 758594, 758595 - CAB, FRONT, WORKING LIGHT (55) - ELECTRICAL SYSTEMS

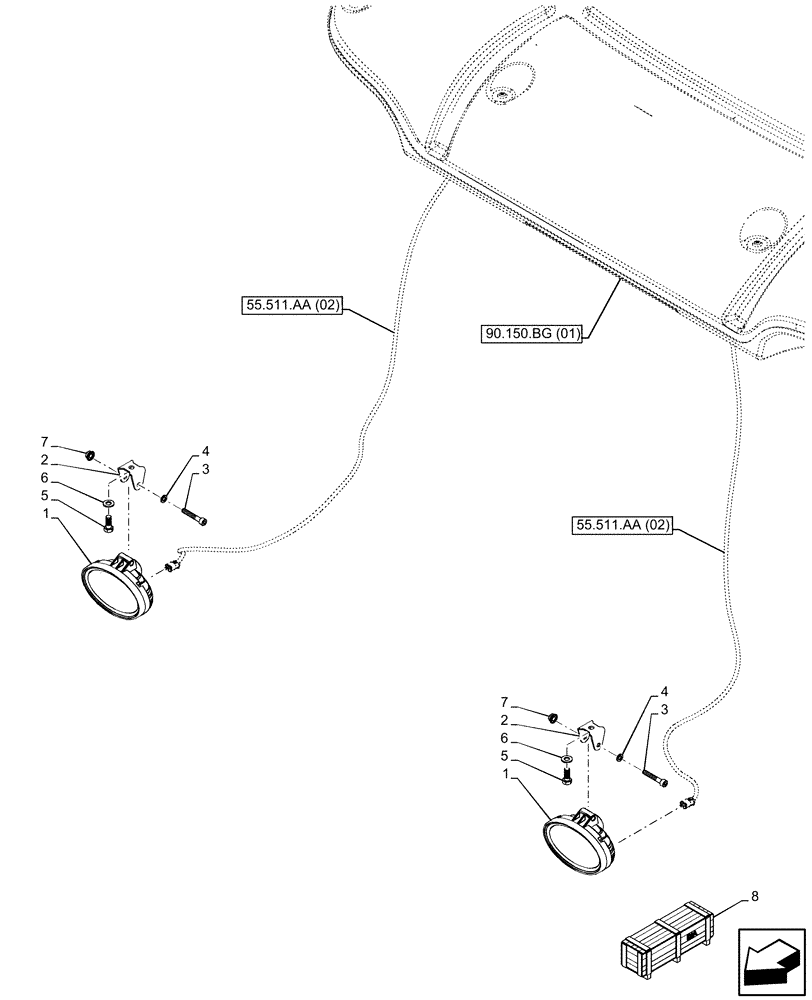

Схема запчастей Case IH MAXXUM 115 - (55.404.BS[07]) - VAR - 758593, 758594, 758595 - CAB, FRONT, WORKING LIGHT (55) - ELECTRICAL SYSTEMS
55.511.aa (02)
6
7
1
3
3
5
7
4
2
2
5
8
1
4
6
90.150.bg (01)
55.511.aa (02)

Артикул

Название

Примечание

Количество

1

47677856

HEADLAMP,20W

2шт.

2

47732510

BRACKET

2шт.

3

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

2шт.

4

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

8.1 x 14.8 x 2

2шт.

5

BER43139

BOLT

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

13046211

NUT,Flange Hex, M8

M8

2шт.

8

710768094

DIA KIT, TRACTOR

2 X Additional Worklight for Front Under Sidelight, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
