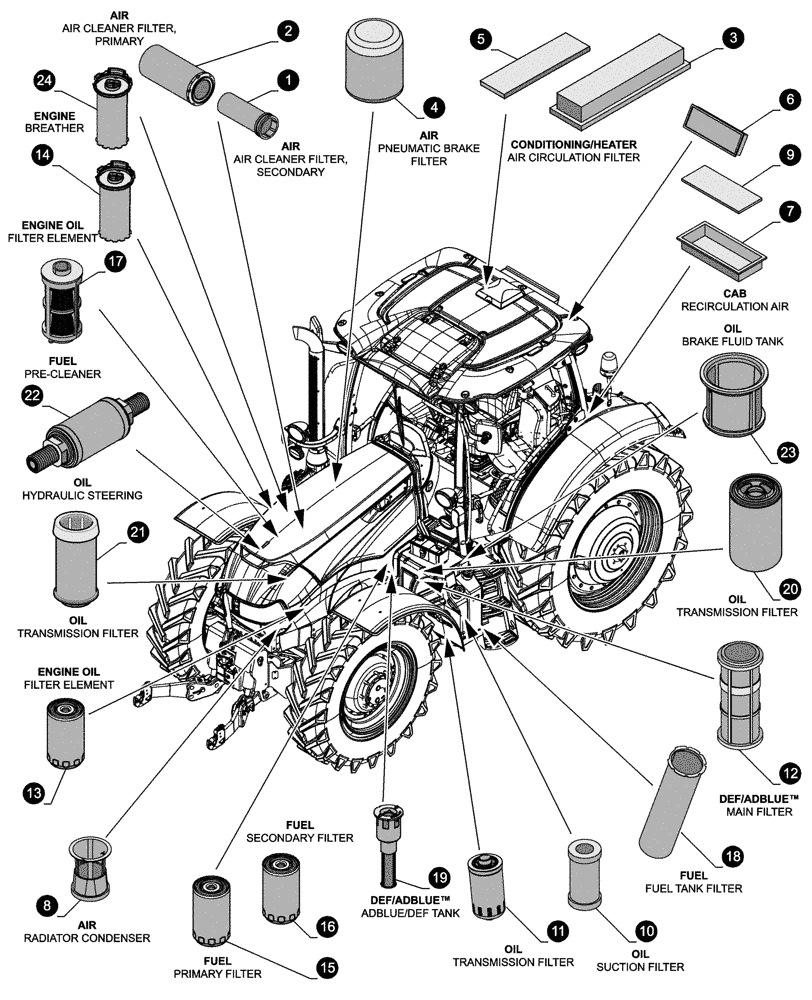

Запчасти Case IH MAXXUM 115 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary Cartridge, Every 1200 hours or 2 years

1шт.

2

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Outer Cartridge, Every 600 hours or when the Warning Light is on

1шт.

2

82028977

AIR FILTER

Primary Cartridge, Every 600 hours

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually

1шт.

4

87638772

CARTRIDGE,165mm L

Air Brakes, Every 1200 hours or every 2 years

1шт.

5

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

1шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

7

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Heating, Conditioning, w/Low Profile Roof, Every 1200 hours or annually

1шт.

8

47580879

FILTER

Radiator, Condenser

1шт.

9

87726696

CAB FILTER,359mm L x 109mm W x 10mm Thk

Inner Thin Cartridge, Every 1200 hours or annually

1шт.

10

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Transmission/Pump, Every 1200 hours or annually

1шт.

11

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

Transmission/Pump, Every 1200 hours or annually

1шт.

12

47364243

FILTER

DeNOx2, Every 3600 hours or every 2 years

1шт.

13

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

14

47760847

ELEMENT

Cartridge Oil Filter, Every 300 hours

1шт.

15

47509565

FILTER

Primary, Every 600 hours

1шт.

16

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 600 hours

1шт.

17

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

18

84481152

FILTER SCREEN

Fuel Tank

1шт.

19

84363730

FILTER STRAINER

ADBLUE/DEF Tank, Every 3600 hours or every 2 years

1шт.

20

84248043

HYDRAULIC OIL FILTER,136mm OD x 244mm L, 1" 3/4-16 UN-2B

Transmission/Pump, Every 600 hours

1шт.

21

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Transmission/Pump, Every 600 hours

1шт.

22

84565584

DAMPER

Hydraulic steering, Every 600 hours

1шт.

23

87491693

FILTER

Brake Fluid Tank, Every 1200 hours or every 2

1шт.

24

5801672465

Engine

FILTER

1шт.
