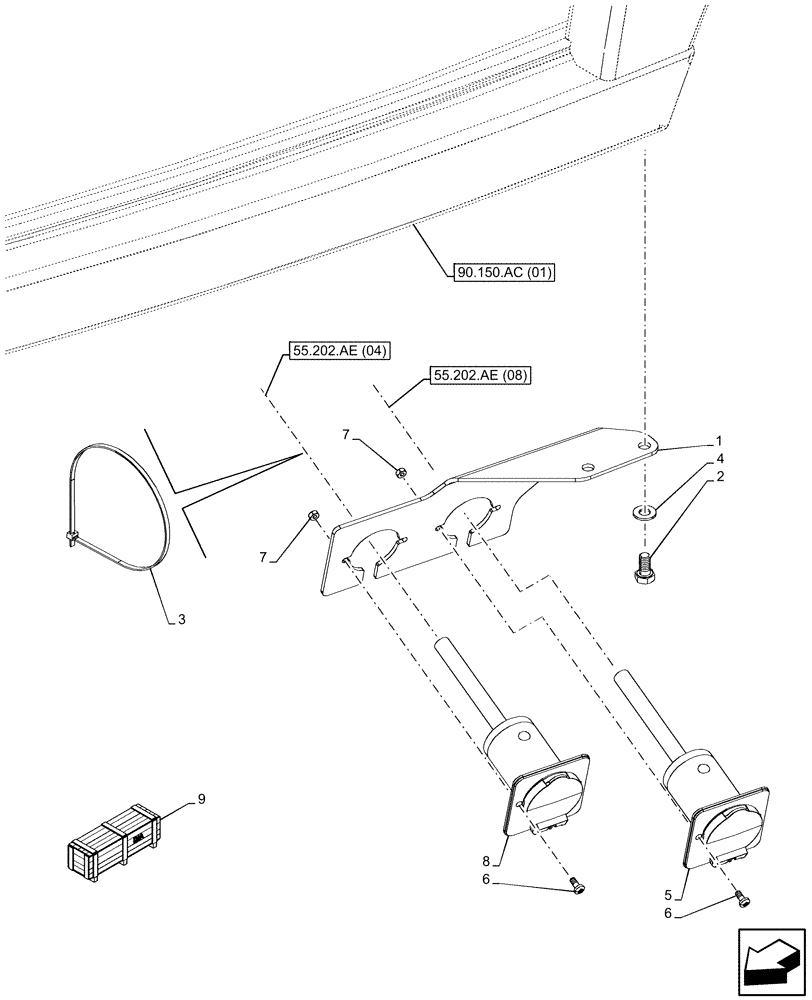

Запчасти Case IH MAXXUM 115 (55.202.AE[05]) - VAR - 758402 - COLD START SYSTEM, BLOCK HEATER (55) - ELECTRICAL SYSTEMS

1

47370843

BRACKET

1шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

4

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

84397507

ELECTRIC CABLE

1шт.

6

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

7

10794011

NUT,M4, Cl 8

4шт.

8

84397506

ELECTRIC CABLE,78mm L

1шт.

9

710206144

DIA KIT, TRACTOR

Cold Weather Pack (Engine Block and Transmission Oil Heater 110V), Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
