Запчасти Case IH MAXXUM 115 (55.202.AE[04]) - VAR - 758402 - COLD START SYSTEM, BLOCK HEATER (55) - ELECTRICAL SYSTEMS

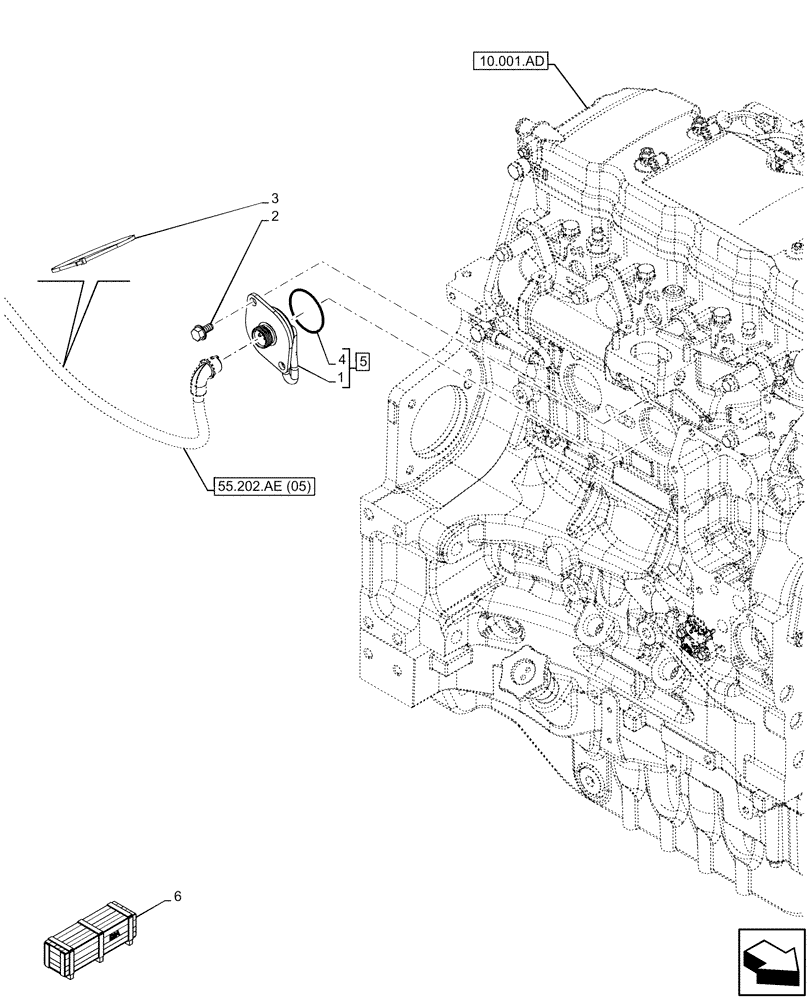

Схема запчастей Case IH MAXXUM 115 - (55.202.AE[04]) - VAR - 758402 - COLD START SYSTEM, BLOCK HEATER (55) - ELECTRICAL SYSTEMS
55.202.ae (05)
6
2
5
3
4
1
10.001.ad

Артикул

Название

Примечание

Количество

1

4891249

BLOCK HEATER

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

4

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

5

4891287

HEATER

ASSY, Incl 1, 4

1шт.

6

710206144

DIA KIT, TRACTOR

Cold Weather Pack (Engine Block and Transmission Oil Heater 110V), Incl 1, 2, 4, 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
