Запчасти Case IH MAXXUM 115 (55.202.AE[01]) - VAR - 758403 - COLD START SYSTEM, BLOCK HEATER (55) - ELECTRICAL SYSTEMS

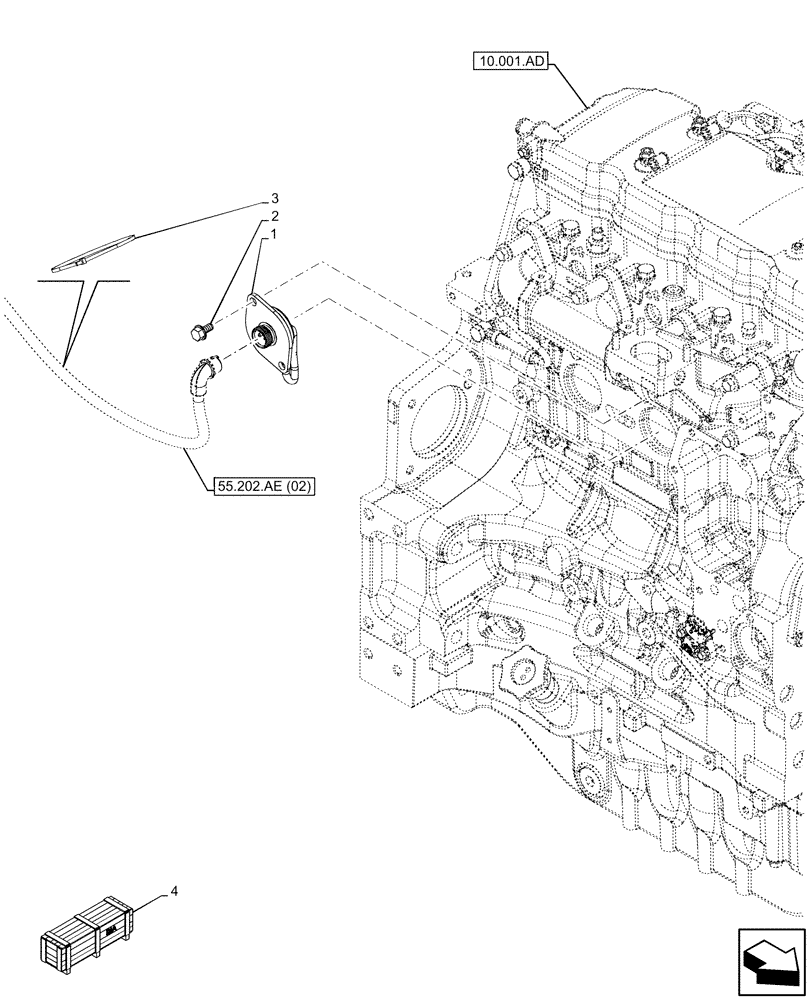

Схема запчастей Case IH MAXXUM 115 - (55.202.AE[01]) - VAR - 758403 - COLD START SYSTEM, BLOCK HEATER (55) - ELECTRICAL SYSTEMS
55.202.ae (02)
4
1
2
3
10.001.ad

Артикул

Название

Примечание

Количество

1

47650464

HEATER

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

4

719106114

DIA KIT, TRACTOR

Cold Weather Pack (Engine Block and Transmission Oil Heater 240V), Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
