Запчасти Case IH MAXXUM 115 (55.050.AS[04]) - VAR - 758482 -AIR CONDITIONING WITH ATC, BLOWER, MOUNTING (55) - ELECTRICAL SYSTEMS

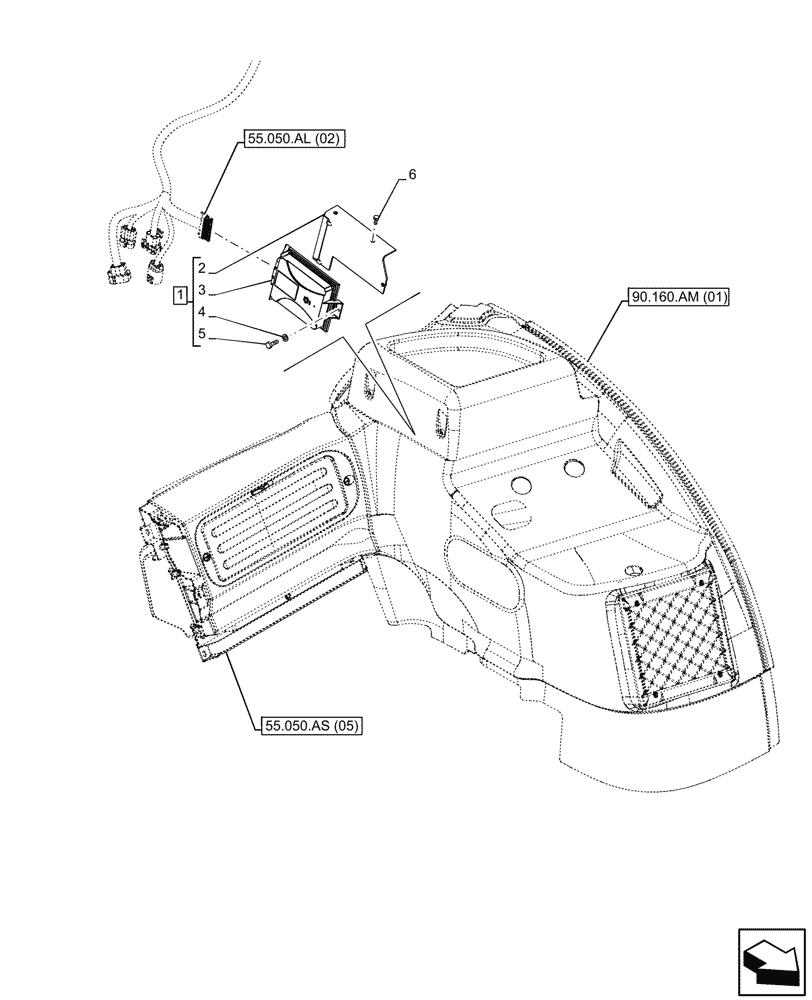

Схема запчастей Case IH MAXXUM 115 - (55.050.AS[04]) - VAR - 758482 -AIR CONDITIONING WITH ATC, BLOWER, MOUNTING (55) - ELECTRICAL SYSTEMS
90.160.am (01)
5
4
6
2
1
3
55.050.al (02)
55.050.as (05)

Артикул

Название

Примечание

Количество

1

84214115

ECU

ASSY, Air Conditioning with ATC, Incl 2 - 5, Serial Range: -ZFES01677

1шт.

1

47791642

ECU

ASSY, Air Conditioning with ATC, Incl 2 - 5, Start Serial: ZFES01678

1шт.

2

87540518

SUPPORT

1шт.

3

84143879

MODULE

ATC Control, Serial Range: -ZFES01677

1шт.

3

NSS

NOT SOLD SEPARAT

Module, ATC Control, Incl in 1, Start Serial: ZFES01678

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

Выбрано товаров: 8
