(55.048.AK[06]) - VAR - 743764, 743766 - PTO CLUTCH, PRESSURE CONTROL VALVE, SOLENOID (40KPH) (50KPH) (17X16) (SEMI POWERSHIFT W/AUTO CHANGE)

Запчасти Case IH MAXXUM 115 (55.048.AK[06]) - VAR - 743764, 743766 - PTO CLUTCH, PRESSURE CONTROL VALVE, SOLENOID (40KPH) (50KPH) (17X16) (SEMI POWERSHIFT W/AUTO CHANGE) (55) - ELECTRICAL SYSTEMS

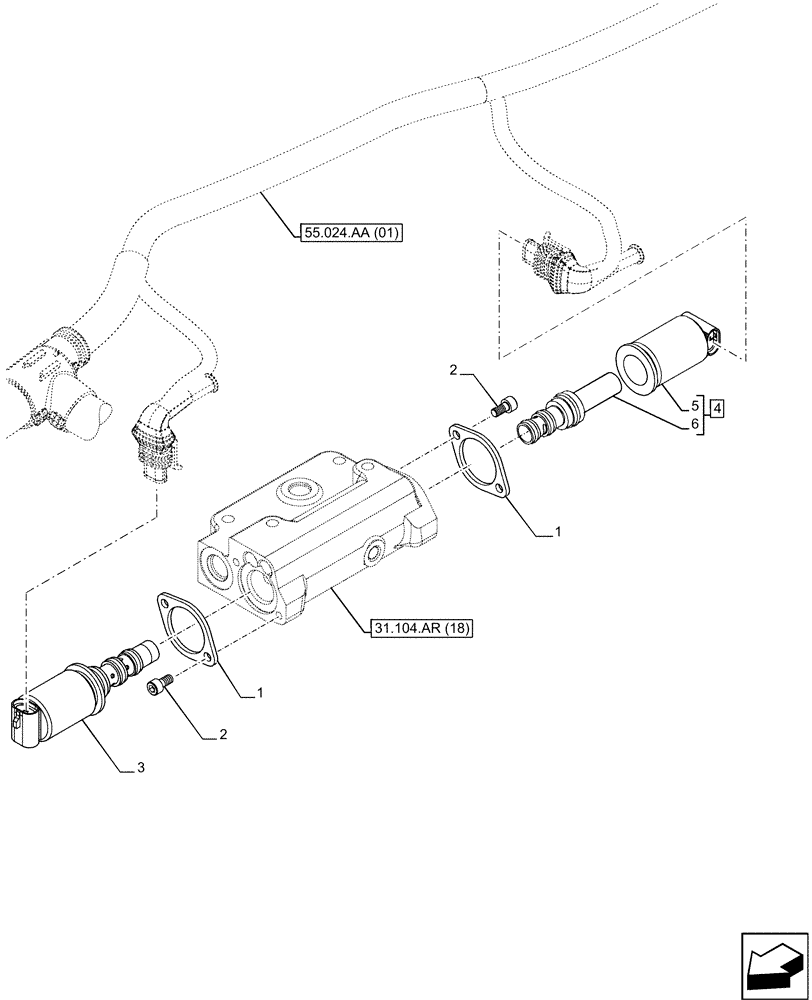

Схема запчастей Case IH MAXXUM 115 - (55.048.AK[06]) - VAR - 743764, 743766 - PTO CLUTCH, PRESSURE CONTROL VALVE, SOLENOID (40KPH) (50KPH) (17X16) (SEMI POWERSHIFT W/AUTO CHANGE) (55) - ELECTRICAL SYSTEMS
31.104.ar (18)
1
4
1
2
5
3
6
2
55.024.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5194826

BRACKET

2шт.

2

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

3

87739558

SOLENOID VALVE,14W

1шт.

3

87739558R

REMAN-SOLENOID

1шт.

3

87739558C

CORE-SOLENOID

Return Number

1шт.

4

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 4

1шт.

6

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

Выбрано товаров: 8
