Запчасти Case IH MAXXUM 115 (55.047.AA[06]) - VAR - 758427 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

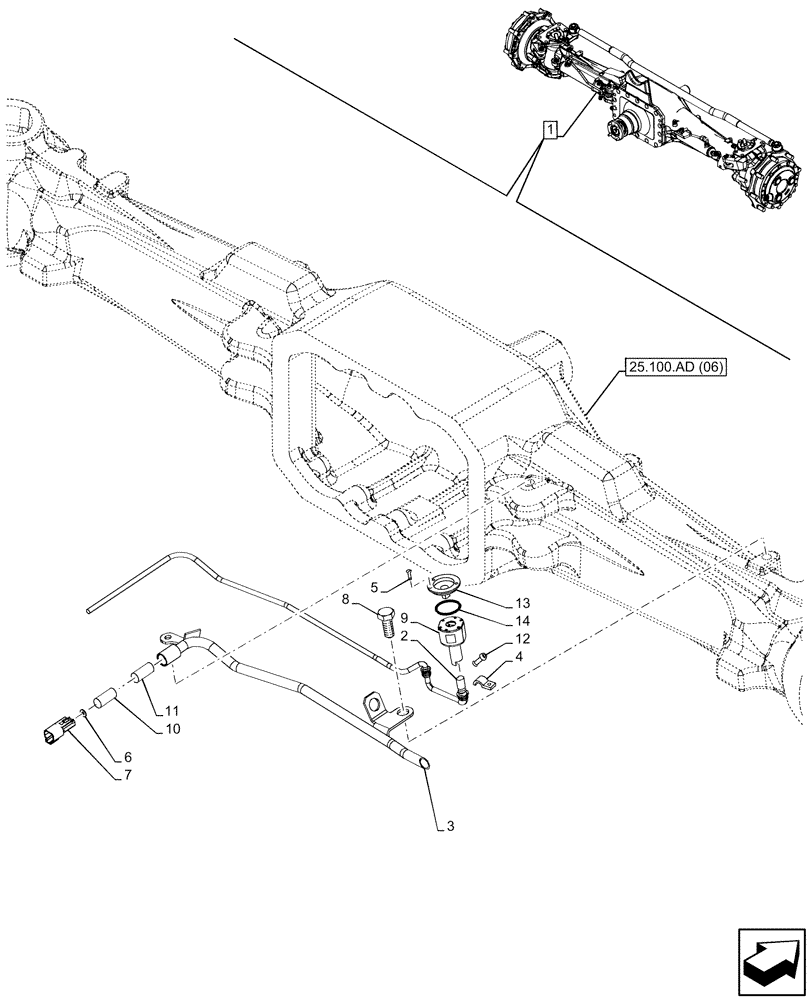

Схема запчастей Case IH MAXXUM 115 - (55.047.AA[06]) - VAR - 758427 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
25.100.ad (06)
10
12
5
11
13
8
3
4
1
7
6
9
2
14

Артикул

Название

Примечание

Количество

1

87745936

LIVE FRONT AXLE

ASSY, Incl 2 - 14

1шт.

See also Axle Components in Figure 25.100.AA (06), 25.100.AD (06), 25.108.AA (06), 25.108.AB (07), 25.108.AB (08), 25.108.AG (06), 25.108.AN (06), 41.216.AN (08), 41.216.AV (04)

1шт.

2

87616286

ELEC CONNECTOR

1шт.

3

87717195

TUBE,12.00mm OD x 354.00, 77.00mm

1шт.

4

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

6

82918451

SPACER

1шт.

7

82918426

ELEC CONNECTOR,Female

1шт.

8

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

9

87627614

SENSOR

Steering Sensor

1шт.

10

82016109

FLEXIBLE SHEATH

1шт.

11

87329095

HOSE PROTECTION

Termoreduction

1шт.

12

82918419

PLUG

1шт.

13

84384510

TOP

1шт.

14

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

Выбрано товаров: 15
