Запчасти Case IH MAXXUM 115 (55.047.AA[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS

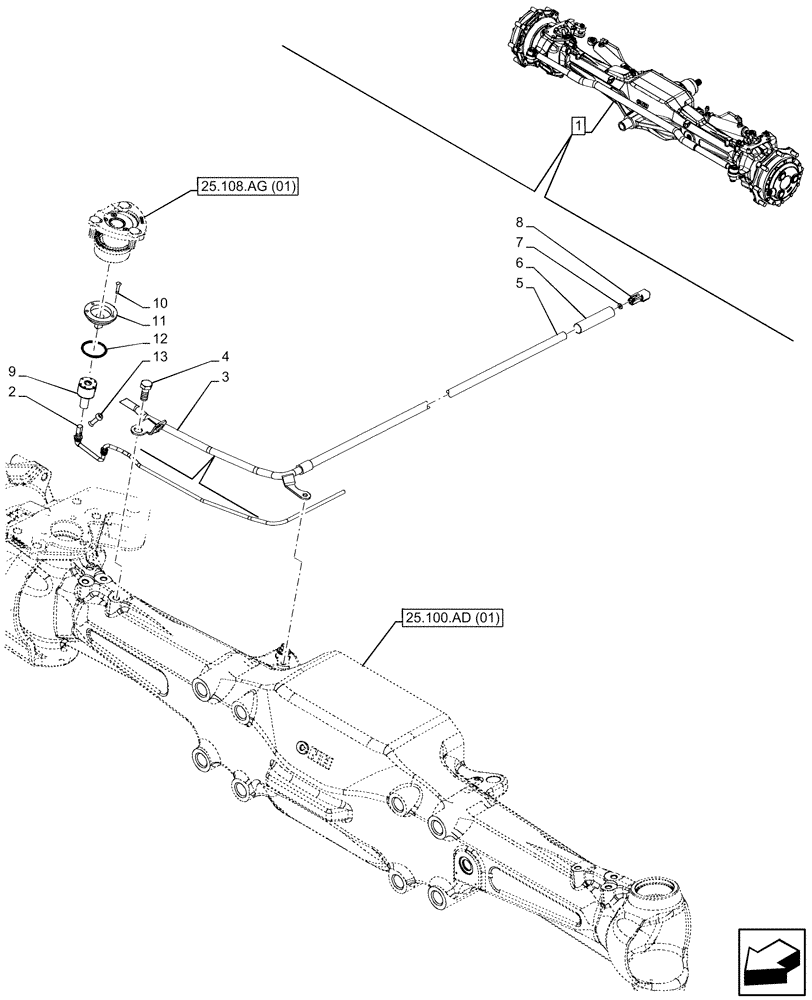

Схема запчастей Case IH MAXXUM 115 - (55.047.AA[01]) - VAR - 390409, 758420, 758421 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, W/O WATERPROOF, STEERING, SENSOR (55) - ELECTRICAL SYSTEMS
25.100.ad (01)
13
2
7
11
12
3
9
1
6
5
4
10
8
25.108.ag (01)

Артикул

Название

Примечание

Количество

1

84180953

LIVE FRONT AXLE

ASSY, Incl 2 - 13

1шт.

See also Axle Components in Figure 25.100.AA (01), 25.100.AD (01), 25.108.AA (01), 25.108.AB (02), 25.108.AG (01), 25.108.AN (01), 41.216.AN (01)

1шт.

2

87627623

ELEC CONNECTOR,Male

1шт.

3

87571760

PIPE

Steering Sensor

1шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

84472045

FLEXIBLE SHEATH

1шт.

6

87329095

HOSE PROTECTION

1шт.

7

82918451

SPACER

1шт.

8

82918426

ELEC CONNECTOR,Female

1шт.

9

87627614

SENSOR

Steering Sensor for 4WD Axle

1шт.

10

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

11

84384510

TOP

1шт.

12

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

13

82918419

PLUG

1шт.

Выбрано товаров: 14
