Запчасти Case IH MAXXUM 115 (55.022.AB[03]) - SERVICE KIT, TRANSMISSION, TEMPERATURE SWITCH (55) - ELECTRICAL SYSTEMS

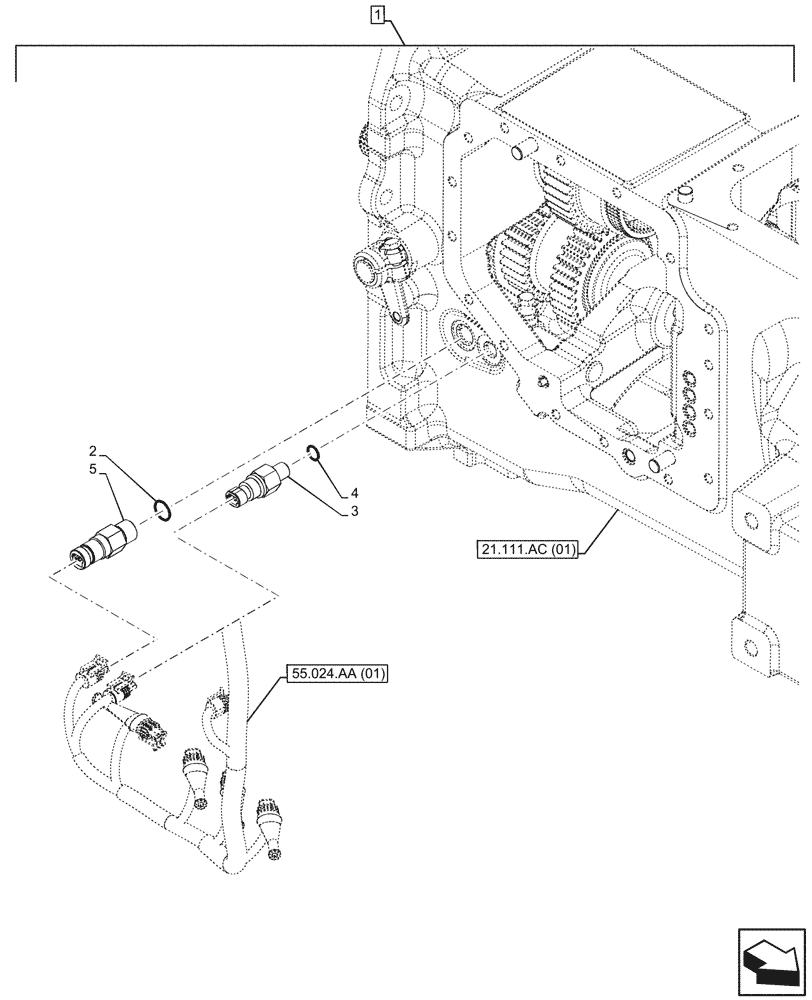

Схема запчастей Case IH MAXXUM 115 - (55.022.AB[03]) - SERVICE KIT, TRANSMISSION, TEMPERATURE SWITCH (55) - ELECTRICAL SYSTEMS
21.111.ac (01)
2
3
1
4
5
55.024.aa (01)

Артикул

Название

Примечание

Количество

1

47798580

GEARBOX

Transmission ASSY, Incl 2 - 5

1шт.

2

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

82018880

SWITCH ASSY

1шт.

4

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

82018879

SWITCH ASSY

1шт.

Выбрано товаров: 5
