(50.104.AQ[01]) - VAR - 392209, 743729 - CAB, AIR FILTER, HIGH PROFILE ROOF

Запчасти Case IH MAXXUM 115 (50.104.AQ[01]) - VAR - 392209, 743729 - CAB, AIR FILTER, HIGH PROFILE ROOF (50) - CAB CLIMATE CONTROL

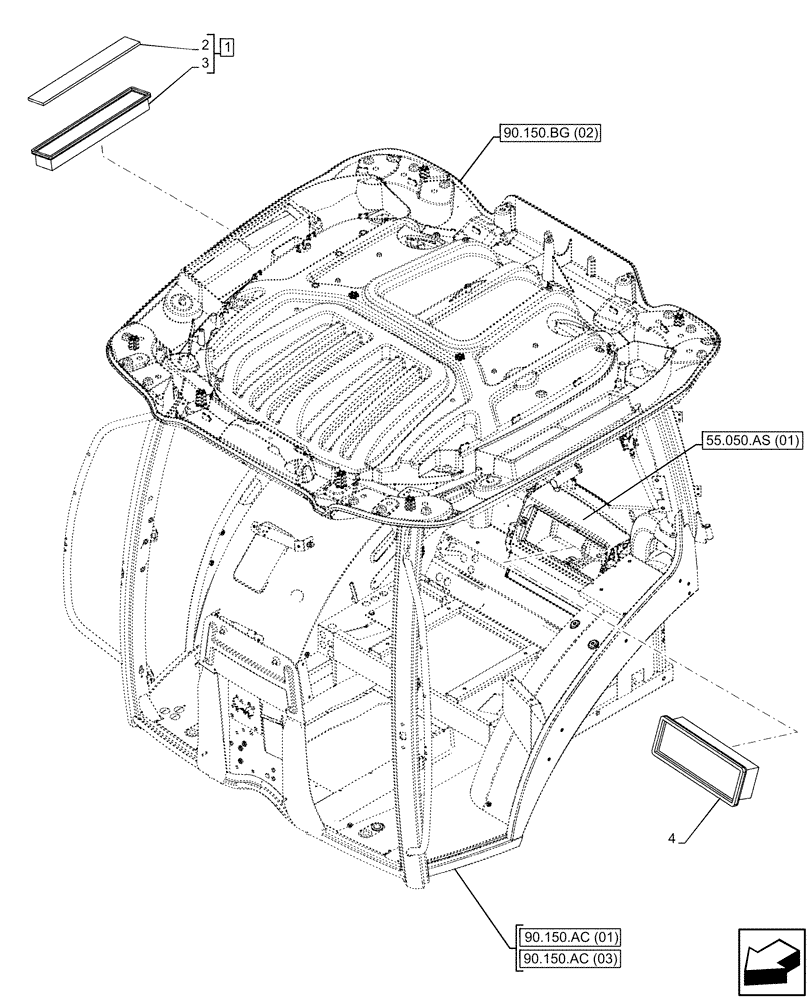

Схема запчастей Case IH MAXXUM 115 - (50.104.AQ[01]) - VAR - 392209, 743729 - CAB, AIR FILTER, HIGH PROFILE ROOF (50) - CAB CLIMATE CONTROL
55.050.as (01)
4
1
3
2
90.150.bg (02)
90.150.ac (01)
90.150.ac (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

87726694

FOAM

2шт.

3

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

2шт.

4

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

1шт.

Выбрано товаров: 4
