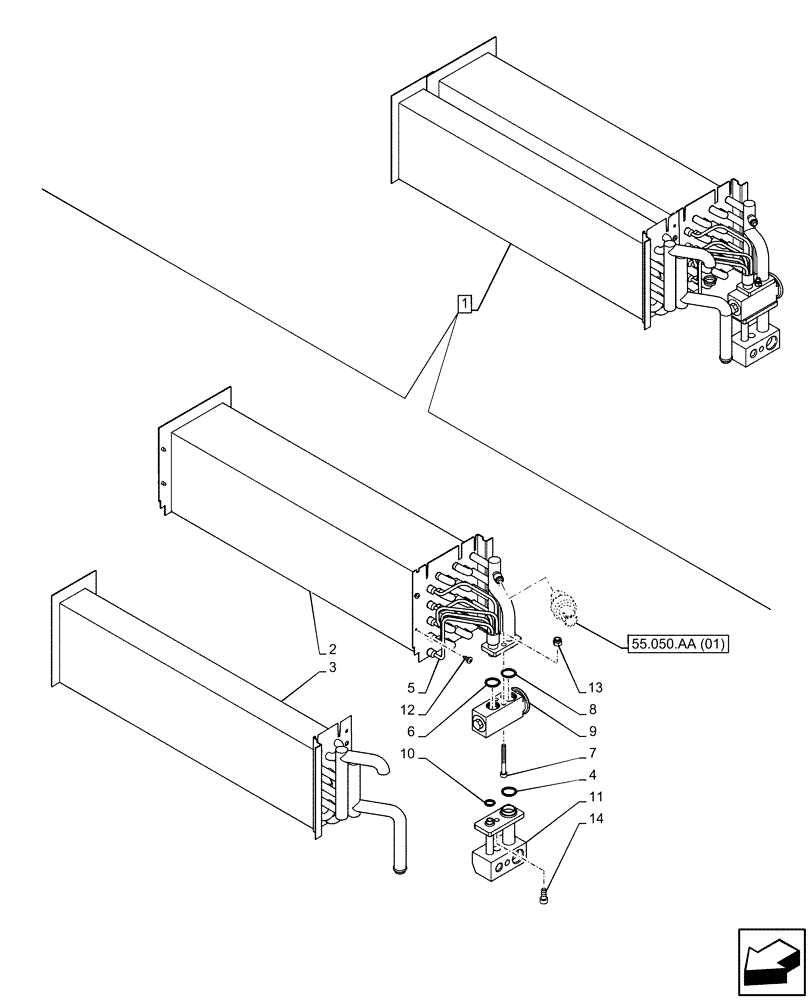

Запчасти Case IH MAXXUM 115 (50.100.AP[04]) - VAR - 390643 - AIR CONDITIONER, COMPONENTS (50) - CAB CLIMATE CONTROL

1

82037665

AIR CONDITIONER

ASSY, Incl 2 - 14

1шт.

See also Figure 50.050.AA (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Air Conditioner, Incl in 1

1шт.

3

82037666

HEATER

1шт.

4

82000789

O-RING,1.85mm Thk x 17.6mm ID

1шт.

5

82033008

EVAPORATOR

1шт.

6

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

7

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

8

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

9

82023542

VALVE, THERMAL EXPAN

1шт.

10

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

11

82027885

PIPE

1шт.

12

15902601

SCREW,Pozidriv Pan Hd, 9.50mm L

4шт.

13

12574111

NUT,M5 x .8, Cl 8

2шт.

14

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.
