(50.100.AK[01]) - VAR - 390643, 758482 - AIR CONDITIONER, TEMPERATURE SWITCH, FLEXIBLE CONTROL

Запчасти Case IH MAXXUM 115 (50.100.AK[01]) - VAR - 390643, 758482 - AIR CONDITIONER, TEMPERATURE SWITCH, FLEXIBLE CONTROL (50) - CAB CLIMATE CONTROL

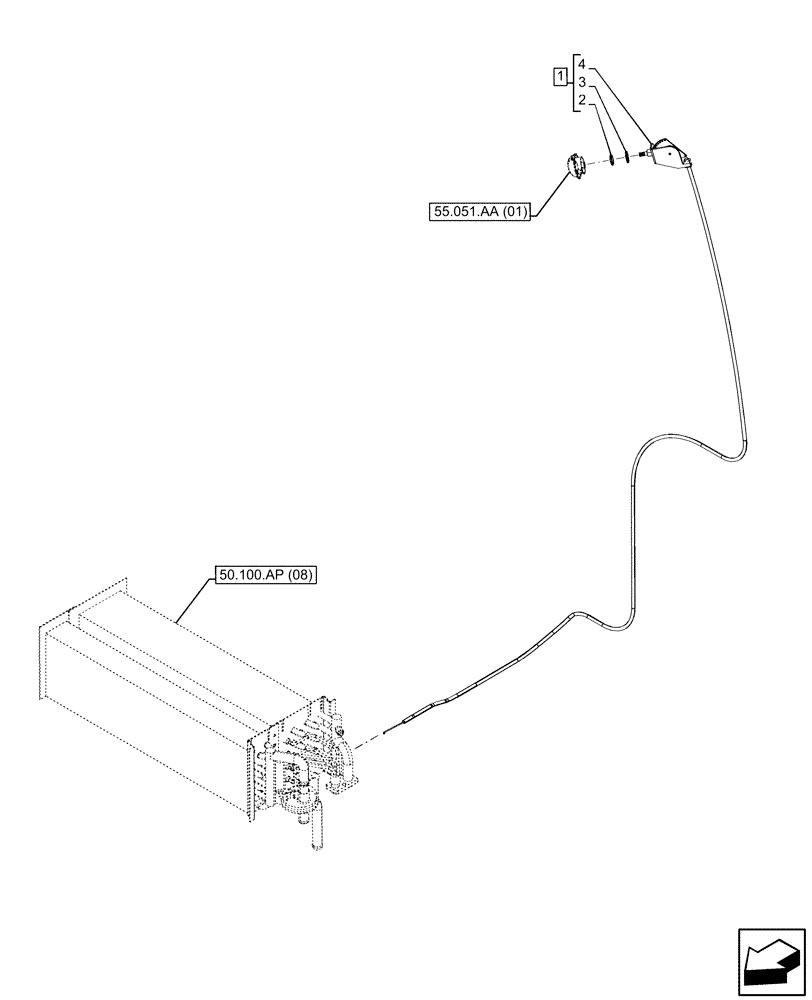

Схема запчастей Case IH MAXXUM 115 - (50.100.AK[01]) - VAR - 390643, 758482 - AIR CONDITIONER, TEMPERATURE SWITCH, FLEXIBLE CONTROL (50) - CAB CLIMATE CONTROL
55.051.aa (01)
2
1
3
4
50.100.ap (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82027897

BOWDEN CONTROL,1796.5mm L

ASSY, Incl 2 - 4

1шт.

2

83905114

NUT

1шт.

3

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Control Water Valve, Incl in 1

1шт.

Выбрано товаров: 4
