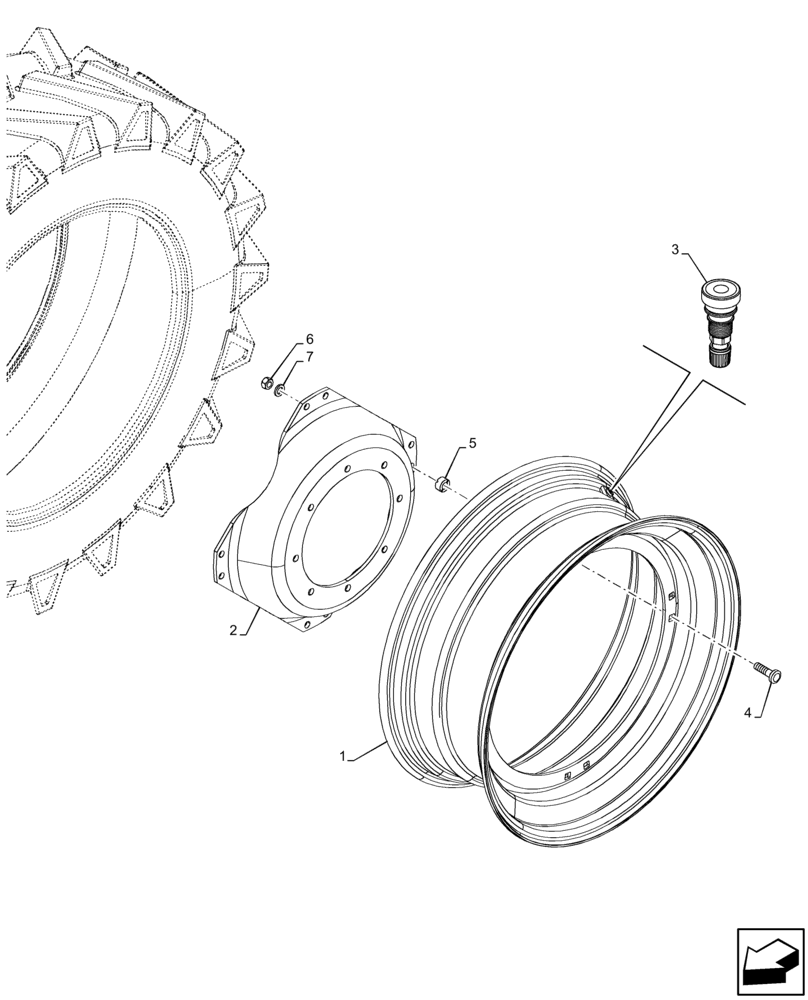

Запчасти Case IH MAXXUM 115 (44.511.AE[01]) - VAR - 8235904 - FRONT, WHEEL, 4WD (W10X24) (44) - WHEELS

1

82037243

RIM,W10X24, 8 Bolts, CASE Silver

W10X24

1шт.

2

82031101

WHEEL DISC,504.6mm Dia, 8 Bolts, CASE Silver

1шт.

3

87323751

PNEUMATIC VALVE

1шт.

4

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

8шт.

5

82022302

SPACER

8шт.

6

12164124

NUT,M16 x 1.5, Cl 8

8шт.

7

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

8шт.
