Запчасти Case IH MAXXUM 115 (41.432.AE[03]) - VAR - 743812 - AUTOGUIDANCE, VALVE, COMPONENTS (41) - STEERING

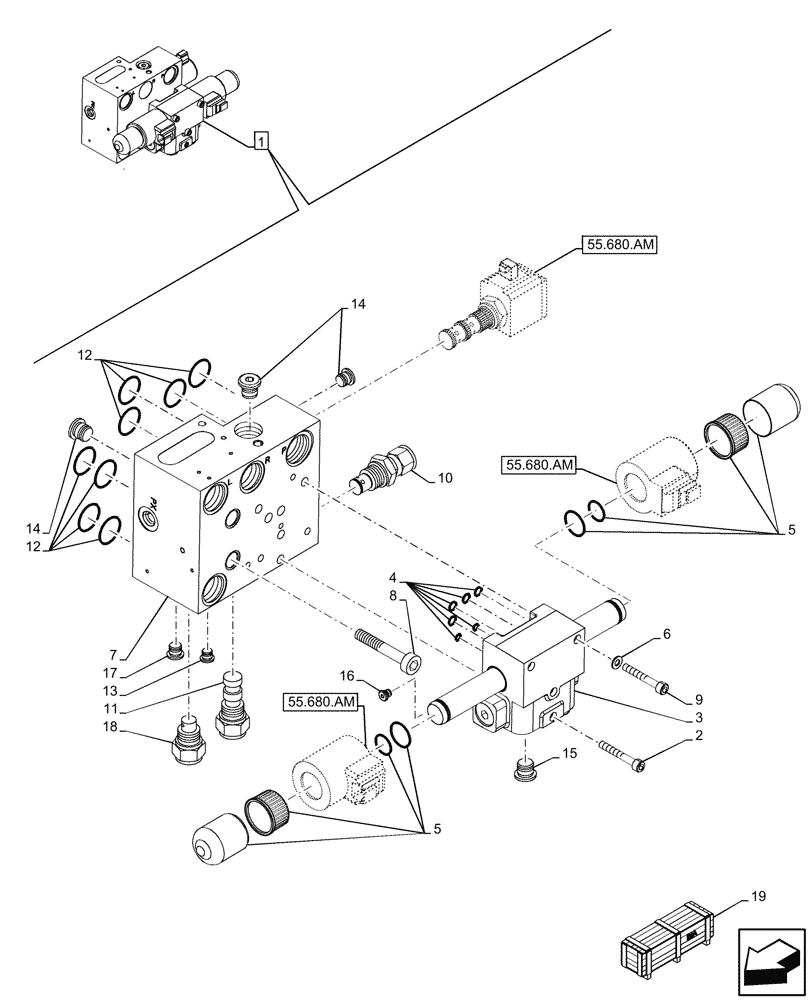

Схема запчастей Case IH MAXXUM 115 - (41.432.AE[03]) - VAR - 743812 - AUTOGUIDANCE, VALVE, COMPONENTS (41) - STEERING
55.680.am
12
5
6
5
11
18
2
16
4
12
9
17
3
10
14
14
13
7
1
15
8
19
55.680.am
55.680.am

Артикул

Название

Примечание

Количество

1

47643871

VALVE SECTION

ASSY, Incl 2 - 18

1шт.

See also Valve Components in Figure 55.680.AM

1шт.

2

14304731

SCREW,M5 x 50mm, Cl 10.9

1шт.

3

87550051

PILOT VALVE

1шт.

4

84160427

SEAL

Kit

1шт.

5

84160386

SEAL

Kit

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

7

47662986

HYDRAULIC MANIFOLD

1шт.

8

84160398

BOLT,Hex, #10 - 32 x 90mm, Cl 12.9

2шт.

9

14304871

HEX SOC SCREW,M6 x 55mm, Cl 12.9

3шт.

10

84164847

VALVE PRESSURE RELIE

1шт.

11

84165175

PRESSURE LIMITER

1шт.

12

84160425

SEAL

Kit

1шт.

13

84289782

PLUG

1шт.

14

84289784

PLUG

3шт.

15

84289783

PLUG,Hex, 3/8" - 19

2шт.

16

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

17

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

18

84220772

CHECK VALVE

1шт.

19

718228014

DIA KIT, TRACTOR

Autoguidance System Sps Cl 3 Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718230014

DIA KIT, TRACTOR

Autoguidance System Sps Cl 3.5 Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 23
