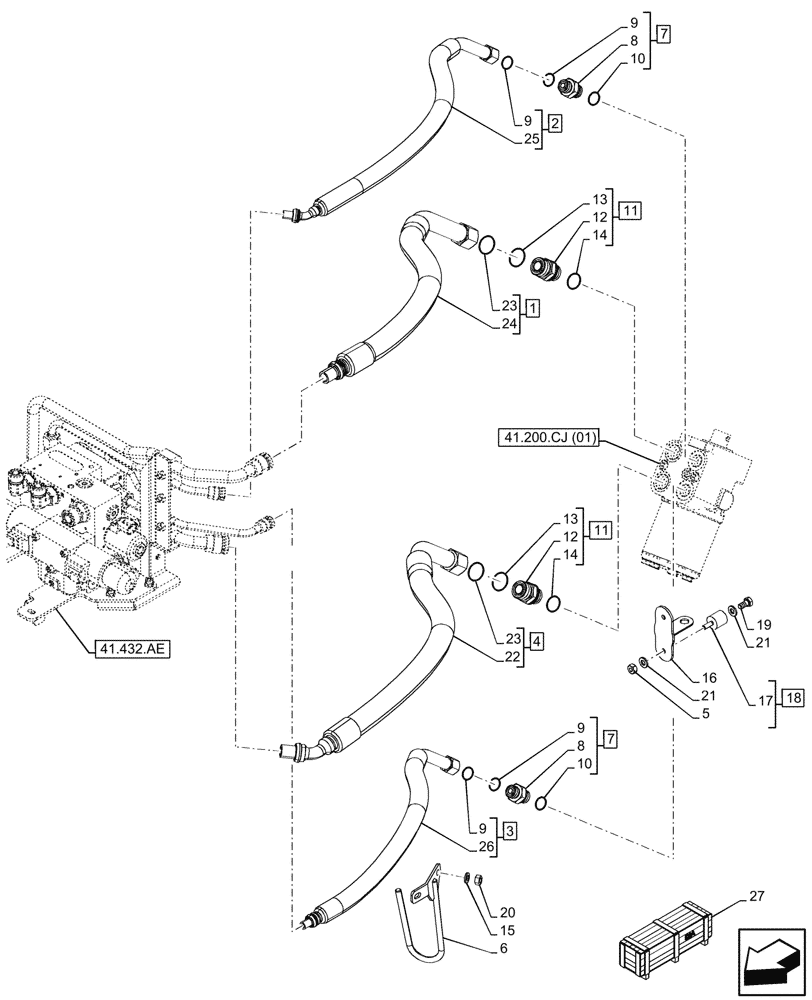

Запчасти Case IH MAXXUM 115 (41.432.AC) - VAR - 391610, 718228, 718230, 743812, 758479, 758480, 758481 - AUTOGUIDANCE, VALVE, LINE (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
47716777
HYDRAULIC HOSE,16mm ID x 720mm L
ASSY, Autoguidance Line, 16mm ID x 720mm, Incl 23 (Qty 1), 24
1шт.
2
47716776
HYDRAULIC HOSE,10mm ID x 725mm L
ASSY, Autoguidance Line, 10mm ID x 725mm, Incl 9 (Qty 1), 25
1шт.
3
47716775
HYDRAULIC HOSE,10mm ID x 640mm L
ASSY, Autoguidance Line, 10mm ID x 640mm, Incl 9 (Qty 1), 26
1шт.
4
47716774
HOSE,16mm ID x 730mm L
ASSY, Autoguidance Line, 16mm ID x 730mm, Incl 22, 23 (Qty 1)
1шт.
5
86625072
NUT,Hex, M6, Cl 10
2шт.
6
47783621
BRACKET
1шт.
7
82016499
HYD CONNECTOR,11/16"-16 x M18 x 1.5
ASSY, Incl 8 (Qty 1), 9 (Qty 1), 10 (Qty 1)
2шт.
8
NSS
NOT SOLD SEPARAT
Connector, Incl in 7
2шт.
10
83999938
SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk
2шт.
11
82016498
HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS
ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1)
2шт.
12
NSS
NOT SOLD SEPARAT
Connector, Incl in 11
2шт.
13
83901443
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
14
82016732
SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk
2шт.
15
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
16
NSS
NOT SOLD SEPARAT
Bracket, Incl in 18
1шт.
17
84485006
SHOCK ABSORBER
2шт.
18
47744362
BRACKET
ASSY, Incl 5, 16 , 17, 21 (Qty 2)
1шт.
19
87391924
BOLT,Hex, M6 - 1 x 12mm, FULL, SST
2шт.
20
9706755
NUT,M6, Cl 8
2шт.
21
14496404
WASHER,M6 x 12 x 2 Thk
2шт.
22
NSS
NOT SOLD SEPARAT
Hose, Incl in 4
1шт.
24
NSS
NOT SOLD SEPARAT
Hose, Incl in 1
1шт.
25
NSS
NOT SOLD SEPARAT
Hose, Incl in 2
1шт.
26
NSS
NOT SOLD SEPARAT
Hose, Incl in 3
1шт.
27
718228014
DIA KIT, TRACTOR
Autoguidance System Sps Cl 3 Axle, Incl 1 - 26
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
27
718230014
DIA KIT, TRACTOR
Autoguidance System Sps Cl 3.5 Axle, Incl 1 - 26
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 30
