Запчасти Case IH MAXXUM 115 (41.216.AV[05]) - VAR - 758422, 758423, 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING TIE-ROD, HYD. LINE (41) - STEERING

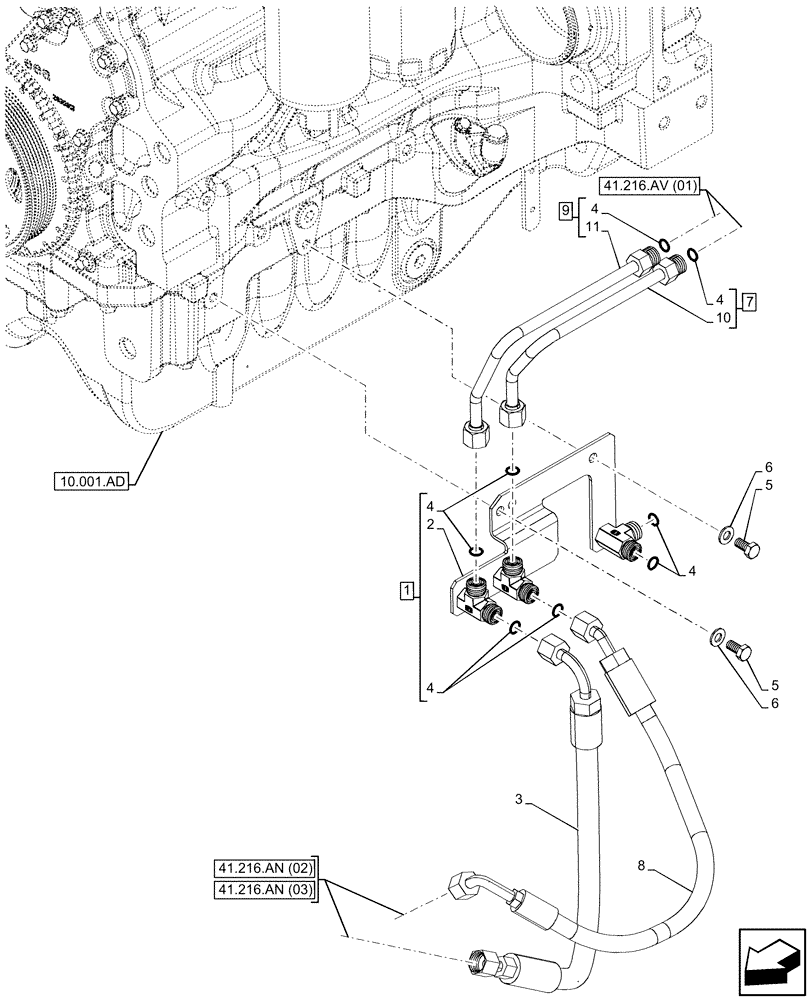

Схема запчастей Case IH MAXXUM 115 - (41.216.AV[05]) - VAR - 758422, 758423, 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING TIE-ROD, HYD. LINE (41) - STEERING
10.001.ad
1
6
5
2
6
4
4
10
4
9
4
3
4
11
7
8
5
41.216.an (02)
41.216.av (01)
41.216.an (03)

Артикул

Название

Примечание

Количество

1

87325469

SUPPORT ASSY.

ASSY, Incl 2, 4

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

82036782

HYDRAULIC HOSE,450.00mm

Steering Right from Pump

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

47470951

HYD TUBE

ASSY, Steering Left from Pump, Incl 4 (Qty 1), 10

1шт.

8

87359495

HYDRAULIC HOSE,520.00mm

Steering Left from Pump

1шт.

9

47470949

HYD TUBE

ASSY, Steering with Susp Axle, Incl 4 (Qty 1), 11

1шт.

10

NSS

NOT SOLD SEPARAT

Tube, Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

Tube, Incl in 9

1шт.

Выбрано товаров: 11
