Запчасти Case IH MAXXUM 115 (41.106.AD[04]) - VAR - 758425, 758426, 758427, 758428 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING TIE-ROD (41) - STEERING

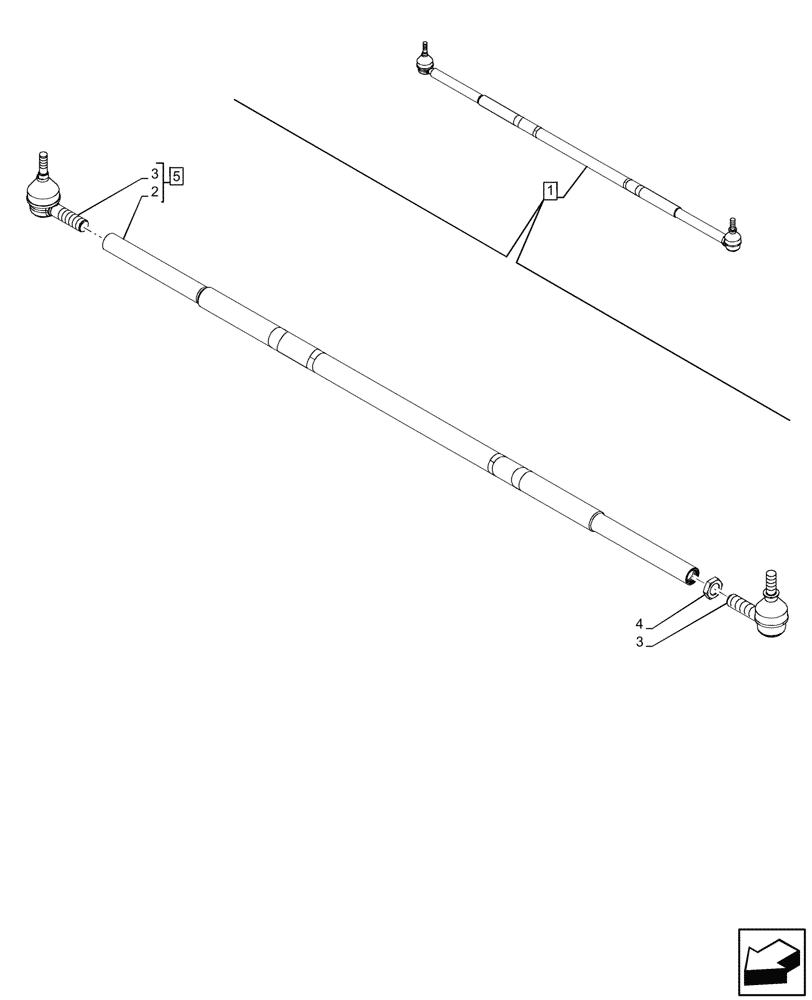

Схема запчастей Case IH MAXXUM 115 - (41.106.AD[04]) - VAR - 758425, 758426, 758427, 758428 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, STEERING TIE-ROD (41) - STEERING
4
2
5
3
1
3

Артикул

Название

Примечание

Количество

1

87332622

TRACK ROD ASSY

ASSY, Incl 2 - 5

1шт.

Part Is Included in Axle Assembly PN 87745935

1шт.

2

NSS

NOT SOLD SEPARAT

Trak Rod, Incl in 5

1шт.

3

87542553

BALL JOINT

2шт.

4

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

5

87332630

TRACK ROD ASSY

ASSY, Incl 2, 3 (Qty 1)

1шт.

Выбрано товаров: 6
