Запчасти Case IH MAXXUM 115 (35.204.BX[01]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS

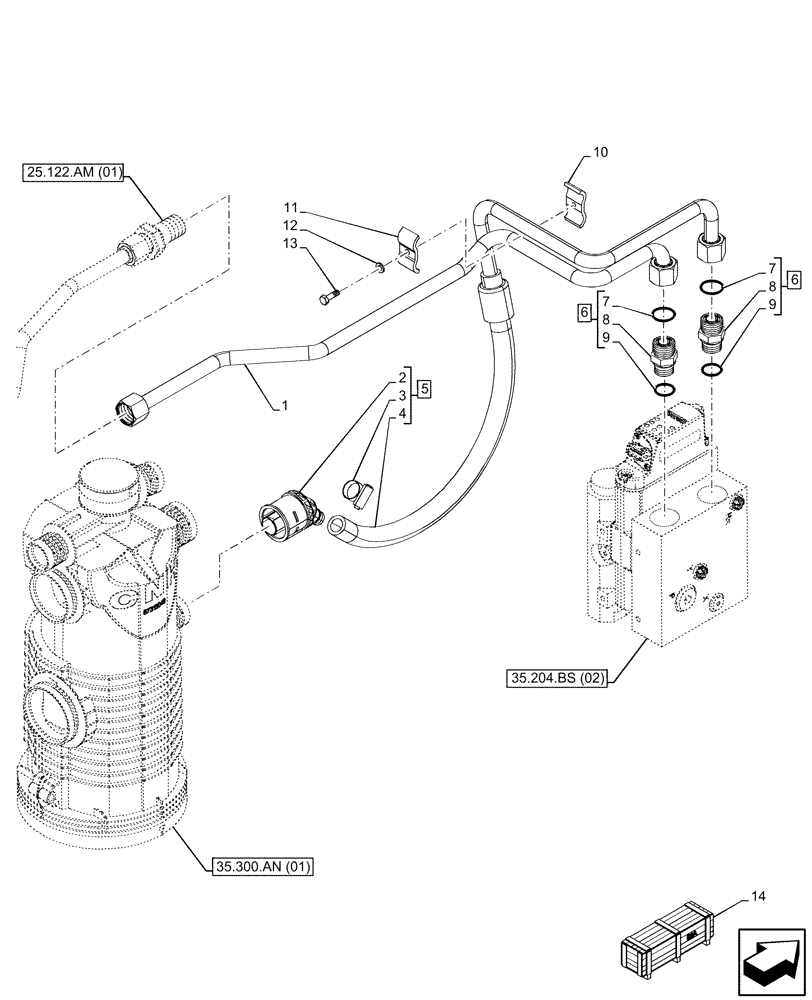

Схема запчастей Case IH MAXXUM 115 - (35.204.BX[01]) - VAR - 758445 - 1 MID-MOUNT CONTROL VALVE, ELECTRICAL, LINE (35) - HYDRAULIC SYSTEMS
35.204.bs (02)
9
5
6
10
8
11
2
1
3
4
7
12
7
6
8
13
14
9
35.300.an (01)
25.122.am (01)

Артикул

Название

Примечание

Количество

1

47506105

PIPE

MMV Supply

1шт.

2

87330808

ELBOW,45 Deg, 21mm - 12.5mm ID

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

1шт.

5

47517917

PIPE

Discharge, ASSY, Incl 2 - 4

1шт.

6

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

10

5180016

BRACKET

1шт.

11

5180153

BRACKET

1шт.

12

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

719763094

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (2 Slice), W/O Joystick, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

14

718223014

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (1 Slice), W/O Joystick, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 17
