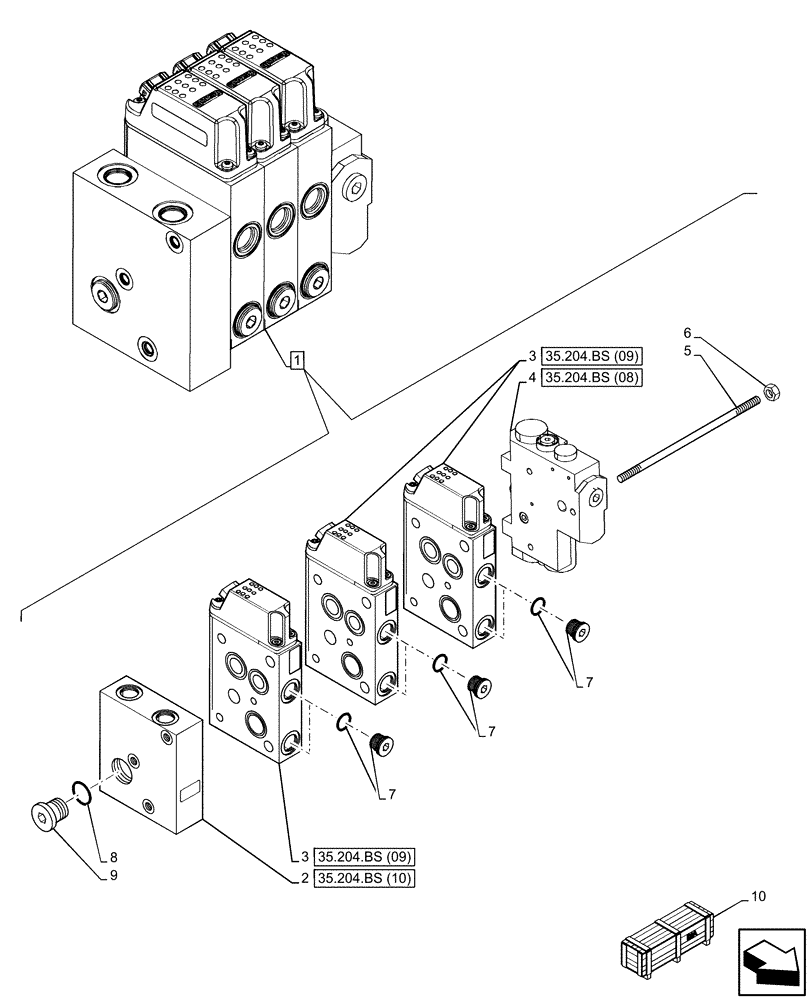

Запчасти Case IH MAXXUM 115 (35.204.BS[07]) - VAR - 743690, 758354 - 3 MID-MOUNT CONTROL VALVES, ELECTRICAL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47433961

CONTROL VALVE

ASSY, 3 EH, Incl 2 - 9

1шт.

2

84381621

VALVE SECTION

1шт.

3

84381608

HYD VALVE SECTION

3шт.

3

84381608R

REMAN-HYD VALVE

Reman Valve

3шт.

3

84381608C

CORE-VALVE HYD

Core Return Number

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

47123183

STUD,M8

211mm

3шт.

6

5195169

NUT,M8

3шт.

7

47554504

KIT,M5 x 18mm, Cl 10.9mm

6шт.

8

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

9

47129435

PLUG

1шт.

10

718229014

DIA KIT, TRACTOR

Electronic Mid Mount Valve Kit (3 Slice), W/O Joystick, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
