(35.204.BQ[03]) - VAR - 743733 - 4 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT

Запчасти Case IH MAXXUM 115 (35.204.BQ[03]) - VAR - 743733 - 4 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS

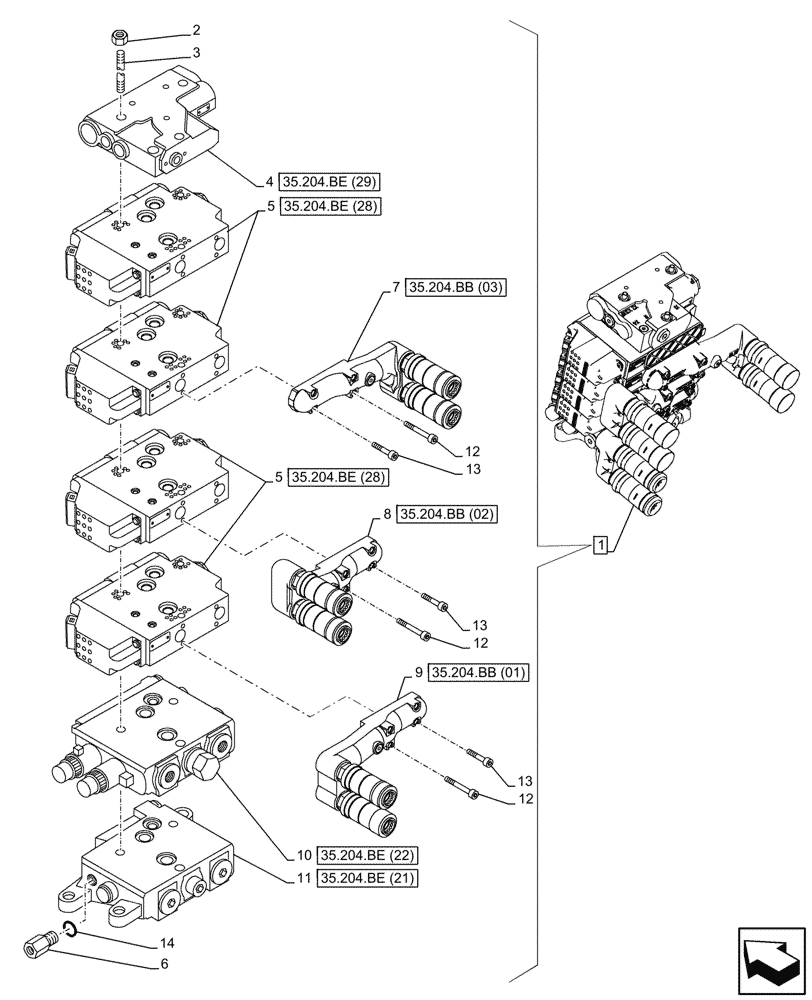

Схема запчастей Case IH MAXXUM 115 - (35.204.BQ[03]) - VAR - 743733 - 4 REMOTE CONTROL VALVES, W/ ELECTROHYDRAULIC ENGAGEMENT (35) - HYDRAULIC SYSTEMS
35.204.be (21)
13
14
13
12
6
13
3
12
9
11
5
5
7
1
12
4
8
2
10
35.204.be (22)
35.204.bb (03)
35.204.bb (01)
35.204.be (28)
35.204.be (28)
35.204.bb (02)
35.204.be (29)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47628490

DISTRIBUTOR

ASSY, Incl 2 - 14

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

ASSY

1шт.

5

84230181

HYD VALVE SECTION

ASSY

4шт.

6

5191704

CHECK VALVE

1шт.

7

47532954

MANIFOLD

Group 3, ASSY

1шт.

8

47532950

MANIFOLD

Group 2, ASSY

1шт.

9

47532947

MANIFOLD

Group 1, ASSY

1шт.

10

84175671

VALVE SECTION

ASSY

1шт.

11

84142195

HYD VALVE SECTION

ASSY

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

9.4 x 2.1mm

1шт.
